Rorik
Overview
SINGLE AND BYPASS VERSIONS
Shower enclosures vary greatly depending on how the space is used and where plumbing fixtures are located. Both Single and Bypass versions are available in the Alcove configuration for exceptional layout flexibility.
Rorik brings unparalleled aesthetic value to any project. Both sides of the system are highly refined esthetically. This allows the door to operate in either direction on both sides of the fixed panel. Whatever your bathroom project requires, Krownlab delivers solutions without compromise.
UNMATCHED DESIGN FREEDOM
The Rorik sliding door shower system offers tremendous design flexibility to fit most shower plans. Rorik is compatible with shower enclosures up to 142” wide and clear openings up to 40” wide. Choose glass up to 1/2” thick for a solid, premium feel, or elect the more traditional 3/8" thickness. Compatible with both tile and shower pans, Rorik is available for alcove and corner configurations. Check out these helpful tips when designing your shower enclosure.

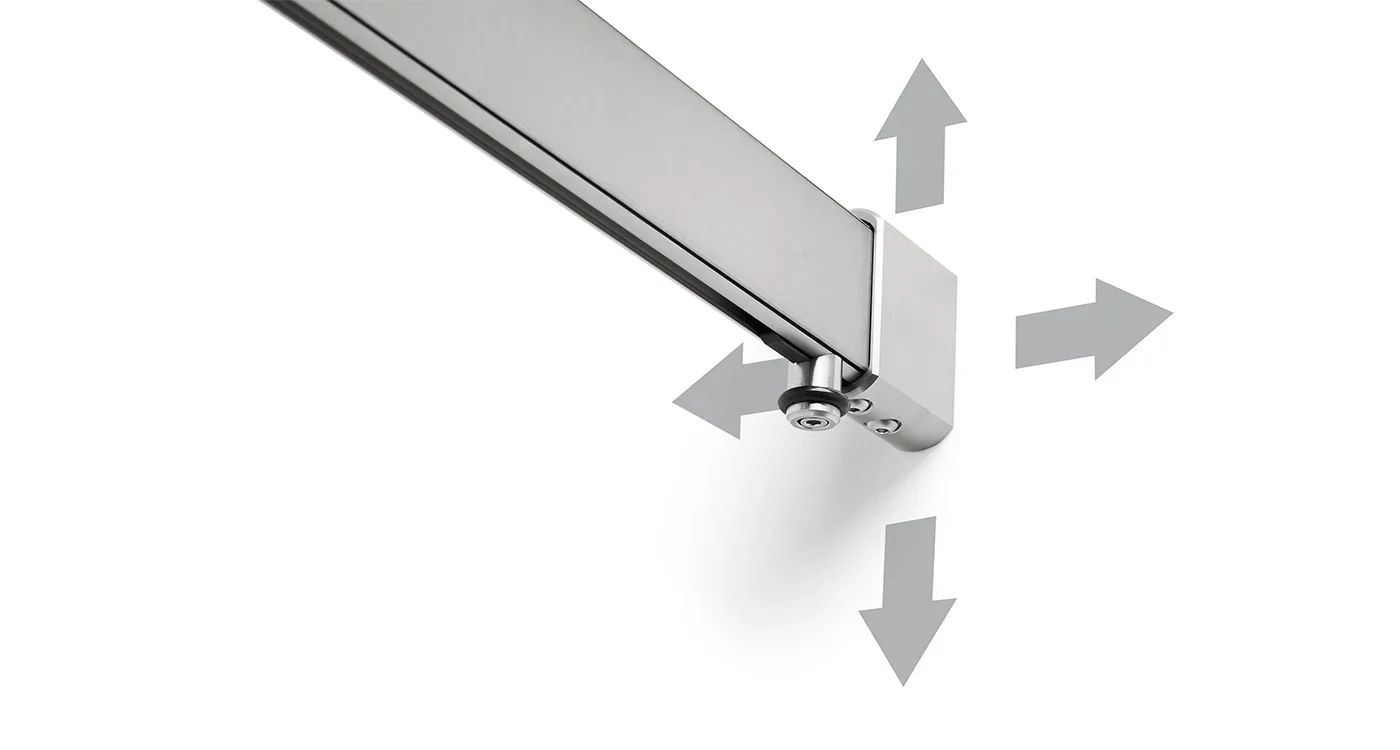

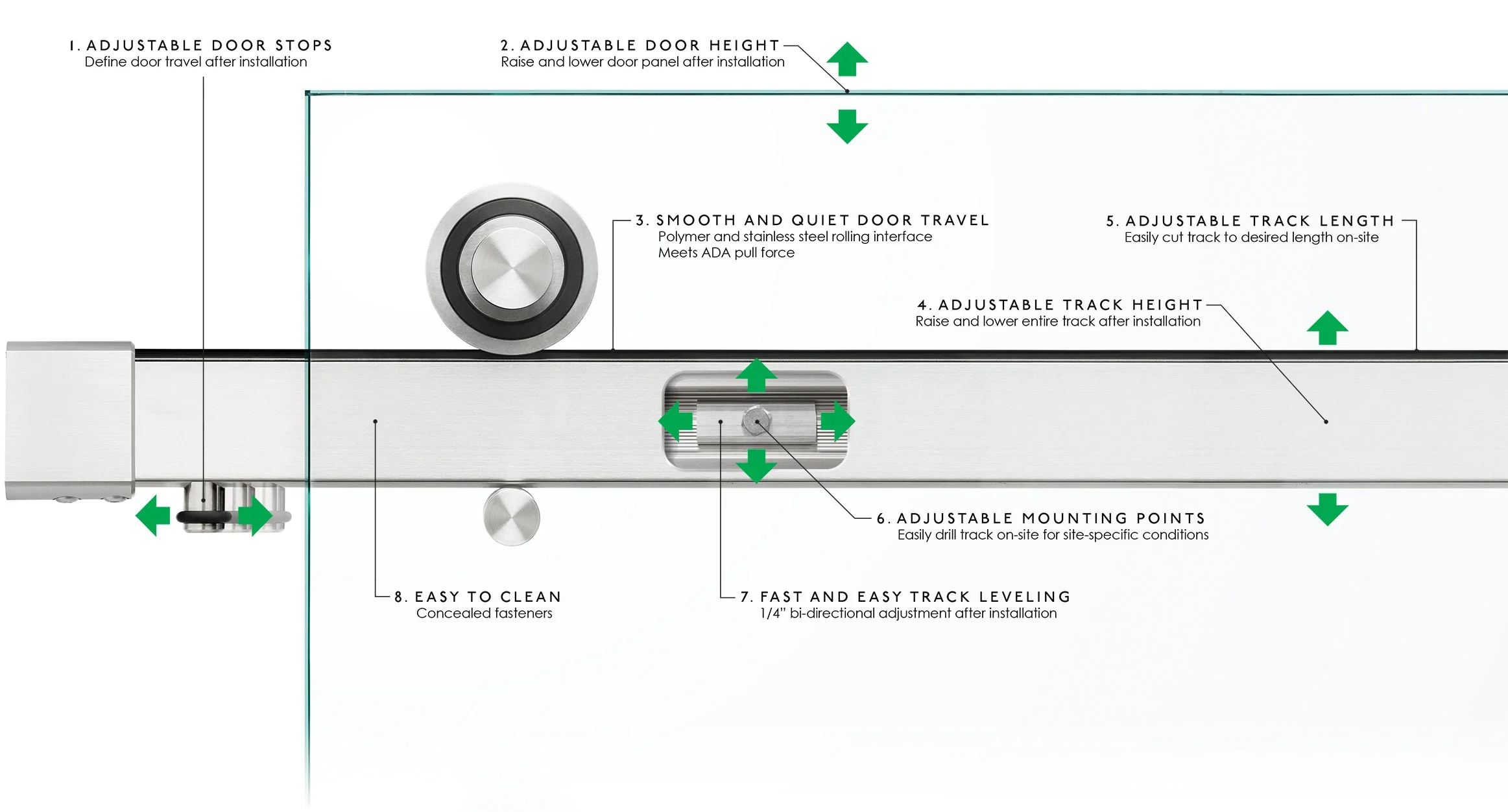

THE TRU-LEVEL™ SYSTEM — PERFECT INSTALLATION EVERY TIME
Rorik is built on our patented Tru-Level™ product platform with a range of unique features absorb construction imperfections and allow fast, easy and accurate installations that last a lifetime. Achieve perfectly level and straight installations - even when walls and mounting holes aren’t. Determine required track length, hole locations, and wall clearance during installation. Perform adjustments after installation – no rework or uninstall required to make corrections. Eliminate common issues like drywall crushing and long-term product sagging. Save time, money and resources during both project planning and installation phases.
TOTAL FIELD ADJUSTABILITY

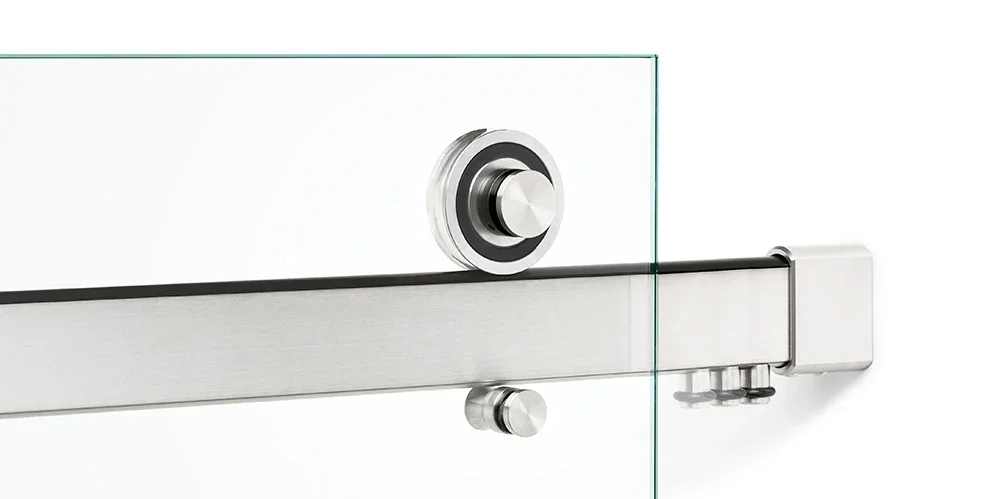

Easily modify Rorik on the job site to fit any project. Along with easily cutting the military grade aluminum alloy track, Rorik’s infinitely adjustable door stops allow minute control of door travel range. Move door stops anywhere along the track with just a few turns of an Allen wrench, even after installation is complete.
DESIGN FOR ALL
The Rorik sliding door shower system is specifically engineered for universal design. Far below the ADA pull force requirements on door panels of any size, the Rorik system can be moved easily with a single finger. Thanks to the (vertical) rigidity unique to Krownlab's track system, the hardware can be installed at heights of 6’ 5” or higher, depending on glass size and thickness. And, because Rorik can be configured to have up to a 36” clear opening, the system meets ADA requirements for roll-in or transition needs.

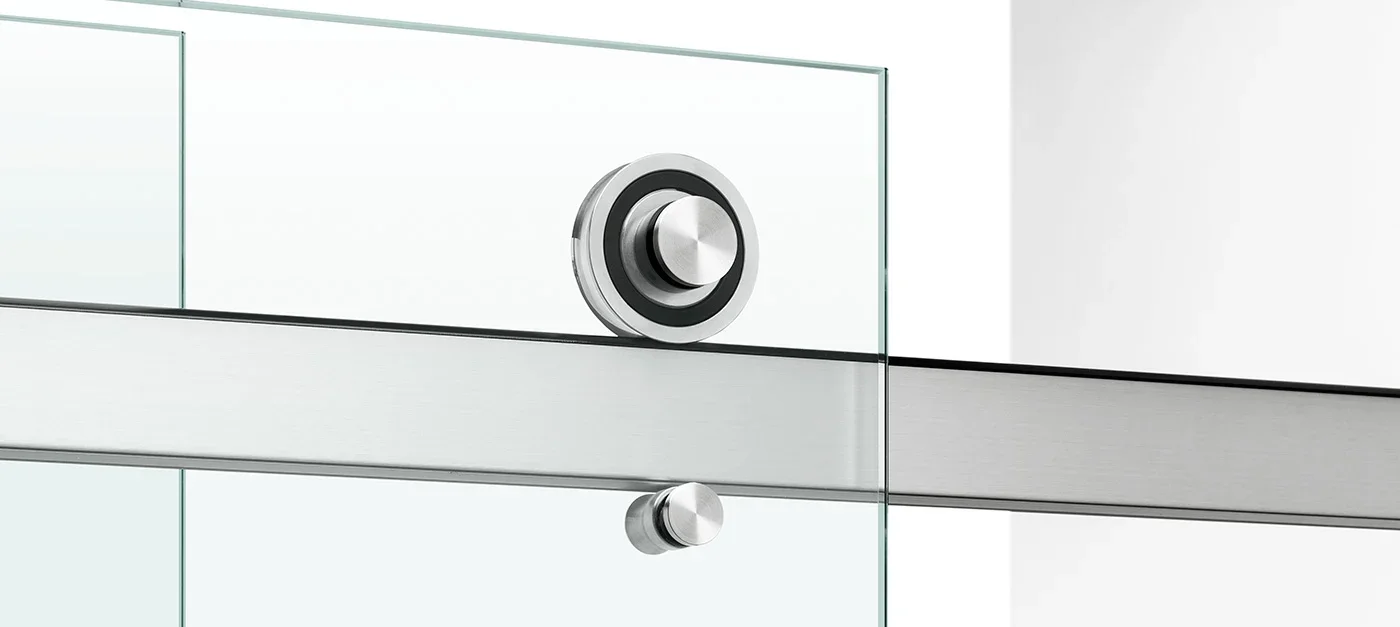

MODERN, MINIMAL AESTHETIC
The Rorik sliding door shower system features our most strikingly simple design to date. Our patented hardware system, featuring an all stainless steel bearing as a wheel, has been adapted for the shower environment. The door rolls on a track that appears to float mid- air thanks to truly concealed fasteners. Even the wall attachment points are elegantly concealed with our specially engineered wall socket to complete the system's modern, minimal aesthetic.
BUILT TO LAST
The Rorik sliding shower door hardware kit has been designed with high-use hospitality projects in mind. Its industry-leading 10-year warranty is backed by rigorous testing in wet environments, capstoned by over two million open-and-close cycles for wear testing. The Rorik system has minimal protruding components for easy maintenance, and is constructed from stainless steel and anodized aluminum—premium metals commonly used in maritime applications.
-

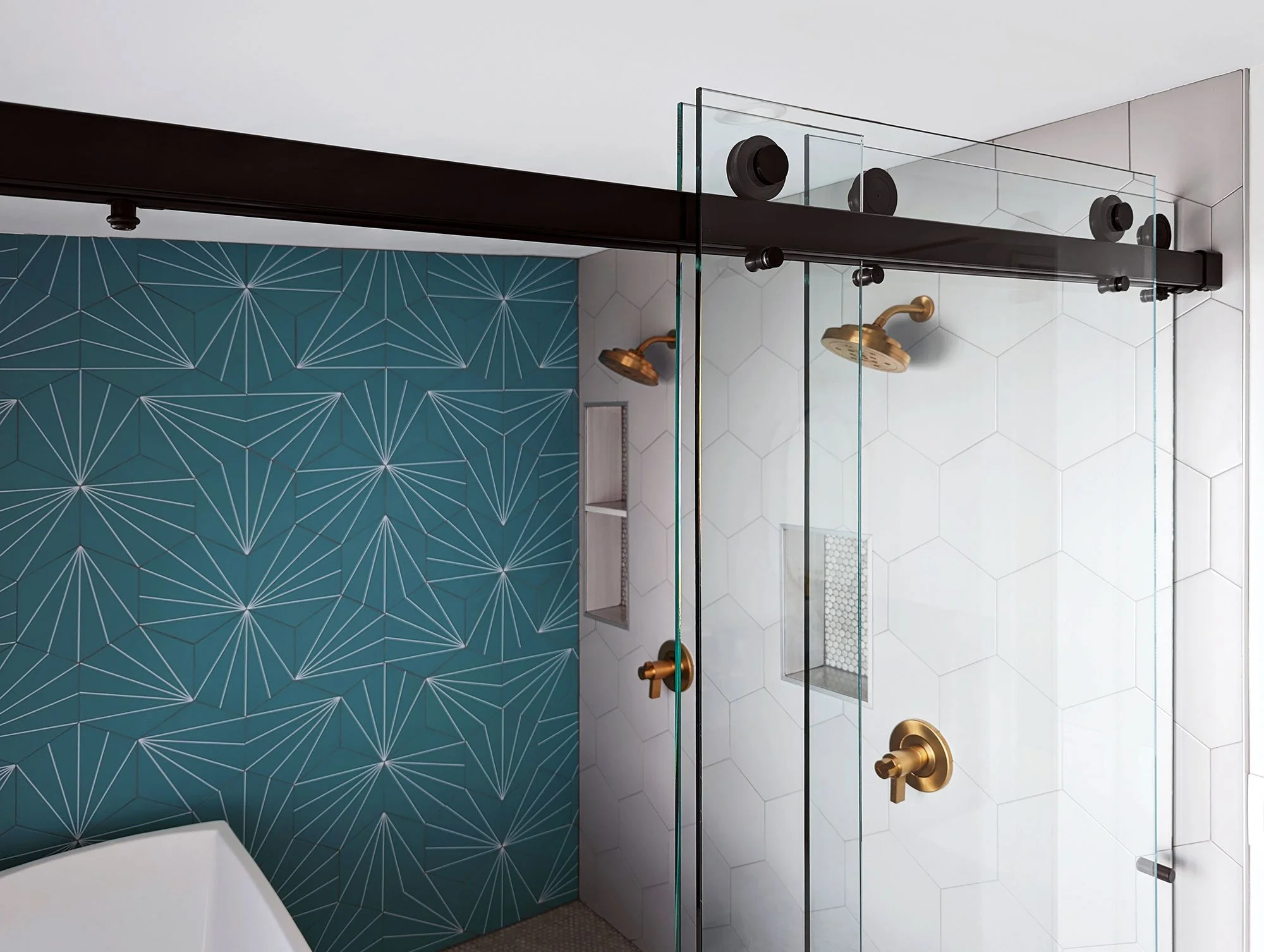

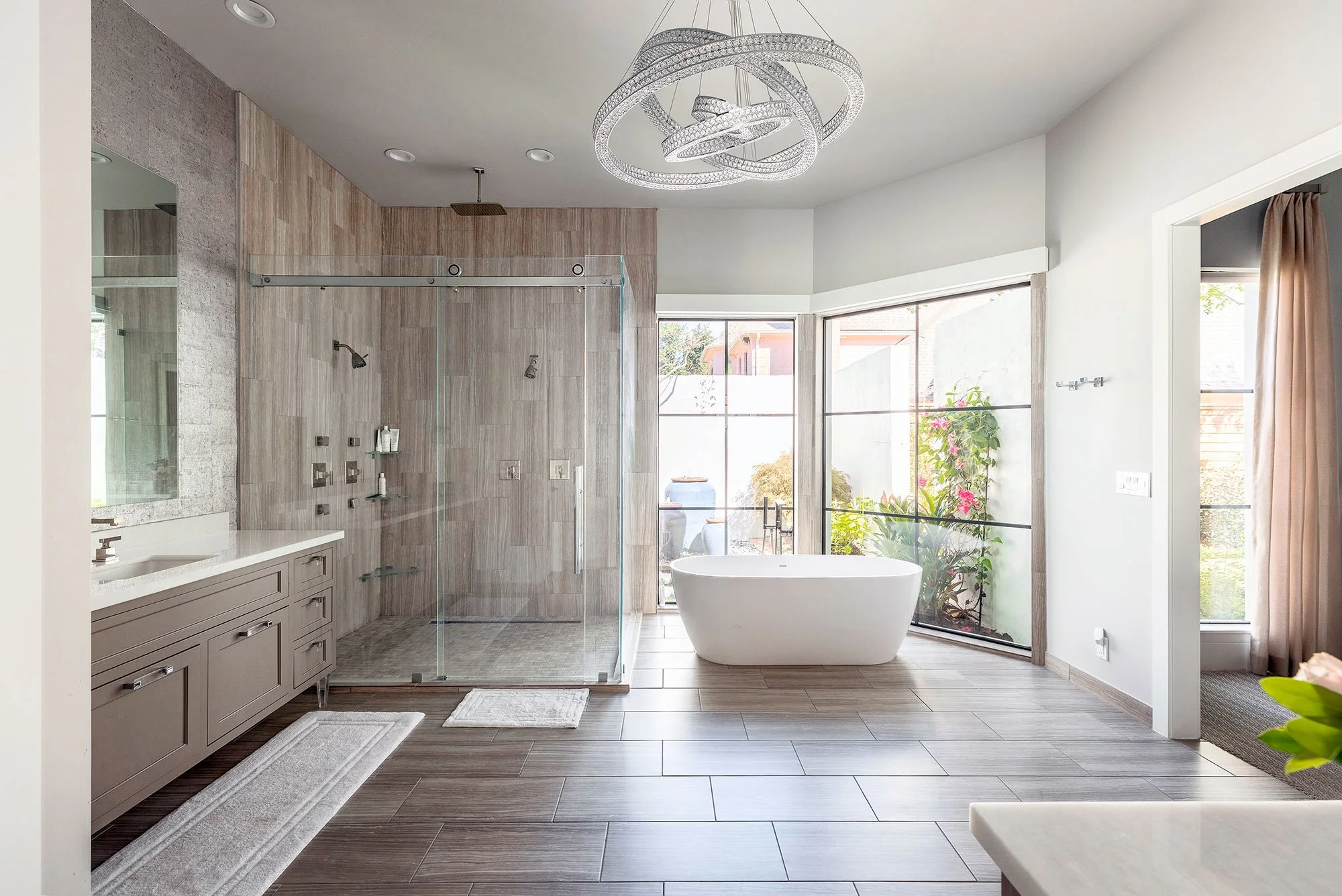

![Krownlab Rorik Alcove installation]()
Alcove bi-passing
-
![Krownlab Rorik Alcove installation]()
Alcove Single
-
![Krownlab Rorik Alcove installation]()
Corner
Cut Sheet - Top Mount
Product Specs
Install Instructions - Single
Install Instructions Bi-Part
Install Instructions Bi-Passing
Catalog

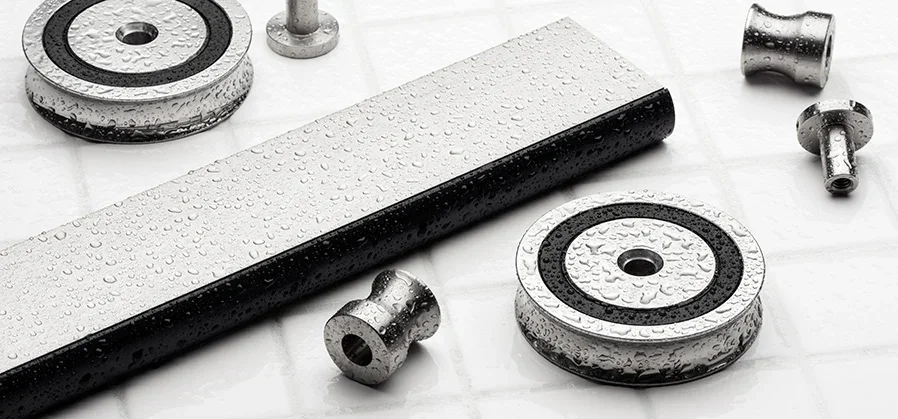

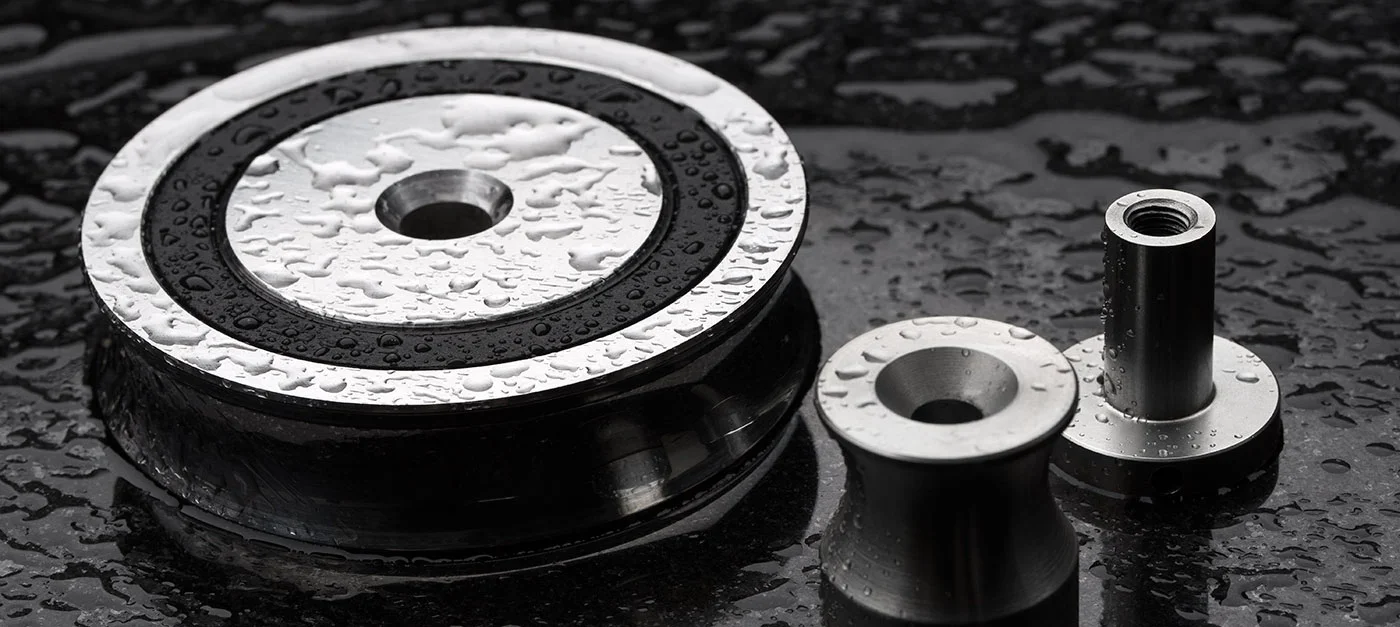

BRUSHED STAINLESS
This premium directional finish is consistently our most popular. Parts are precisely textured with a fine linear or circular grain. Often referred to as a No. 4 directional finish, the fine linear graining is smooth to the touch and adds a sophisticated texture to the product. For similar finishes offered on other Krownlab products, consider Stainless Steel.

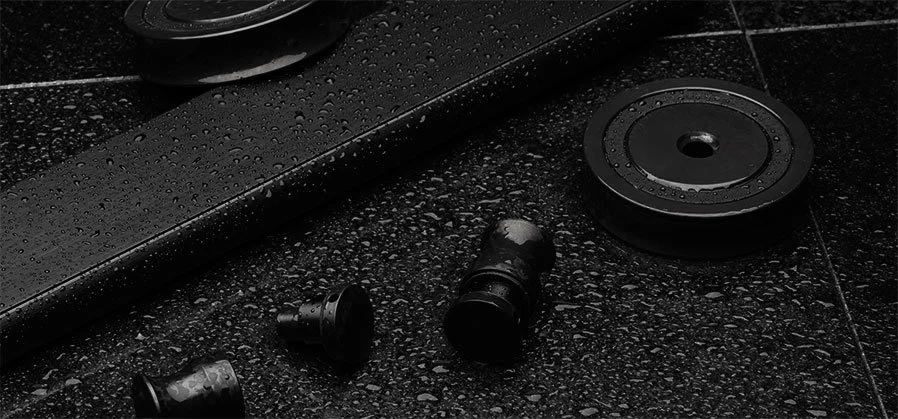

BLACK STAINLESS
Premium black metallic finish with a fine brushed material surface texture. Often referred to as a No. 4 directional grain, this fine texture is smooth to the touch and adds sophistication to the appearance. This highly durable finish is either achieved through a proprietary two-step electrolytic anodizing, or a black oxide process. Unlike the commonly used paint, plating, and powder coat processes, this finish will never crack, chip, or flake.
