Precision German Manufacturing Expertly machined for smooth, silent operation and long-term durability
-
DT.8510.AR : Akzent Full_Free-Swing
DT.8510.AR : Akzent Full_BTS
DT.8560.AR : Akzent Short_Free-Swing
DT.8560.AR : Akzent Full_BTS
DT.8510.AU : Klassik Full_Free-Swing
DT.8550.AU : Klassik Full_BTS
DT.8565.AU : Klassik Short_Free-Swing
DT.8560.AU : Klassik Short_BTS

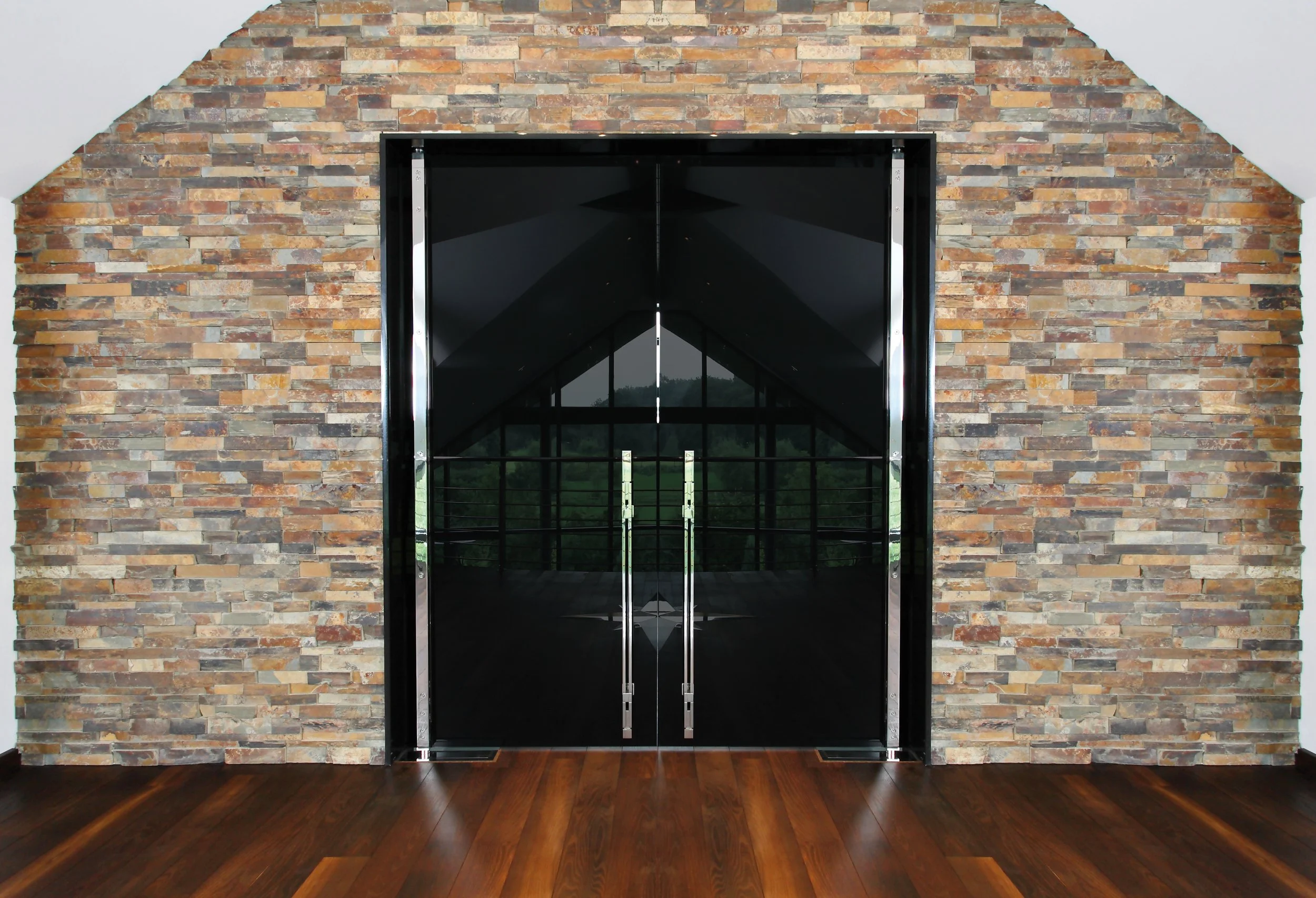

Akzent Pivot : Full Free-Swing
Model : DT.8510.AR
Max. 176 Lbs.
Suitable for glass up to 1/2" up to 10' height
Pivot rod is solid stainless steel 1 9/16" x 3/8", pre-drilled for mount positions.
Specify with or without an auto door closer BTS [automatically brings the door to a central position]
Made of V2A (304 grade) stainless steel 100% Made in Germany
FINISHES : Satin Stainless Steel | Polished Stainless Steel | Powder-Coated RAL color | PVD colors | 24K gold plated
Akzent Pivot : Full BTS
Model : DT.8510.AR
Max. 176 Lbs.
Suitable for glass up to 1/2" up to 10' height
Pivot rod is solid stainless steel 1 9/16" x 3/8", pre-drilled for mount positions.
Designed for GEZE TS 500 NV - auto door closer BTS [automatically brings the door to a central position]
Made of V2A (304 grade) stainless steel 100% Made in Germany
FINISHES : Satin Stainless Steel | Polished Stainless Steel | Powder-Coated RAL color | PVD colors | 24K gold plated

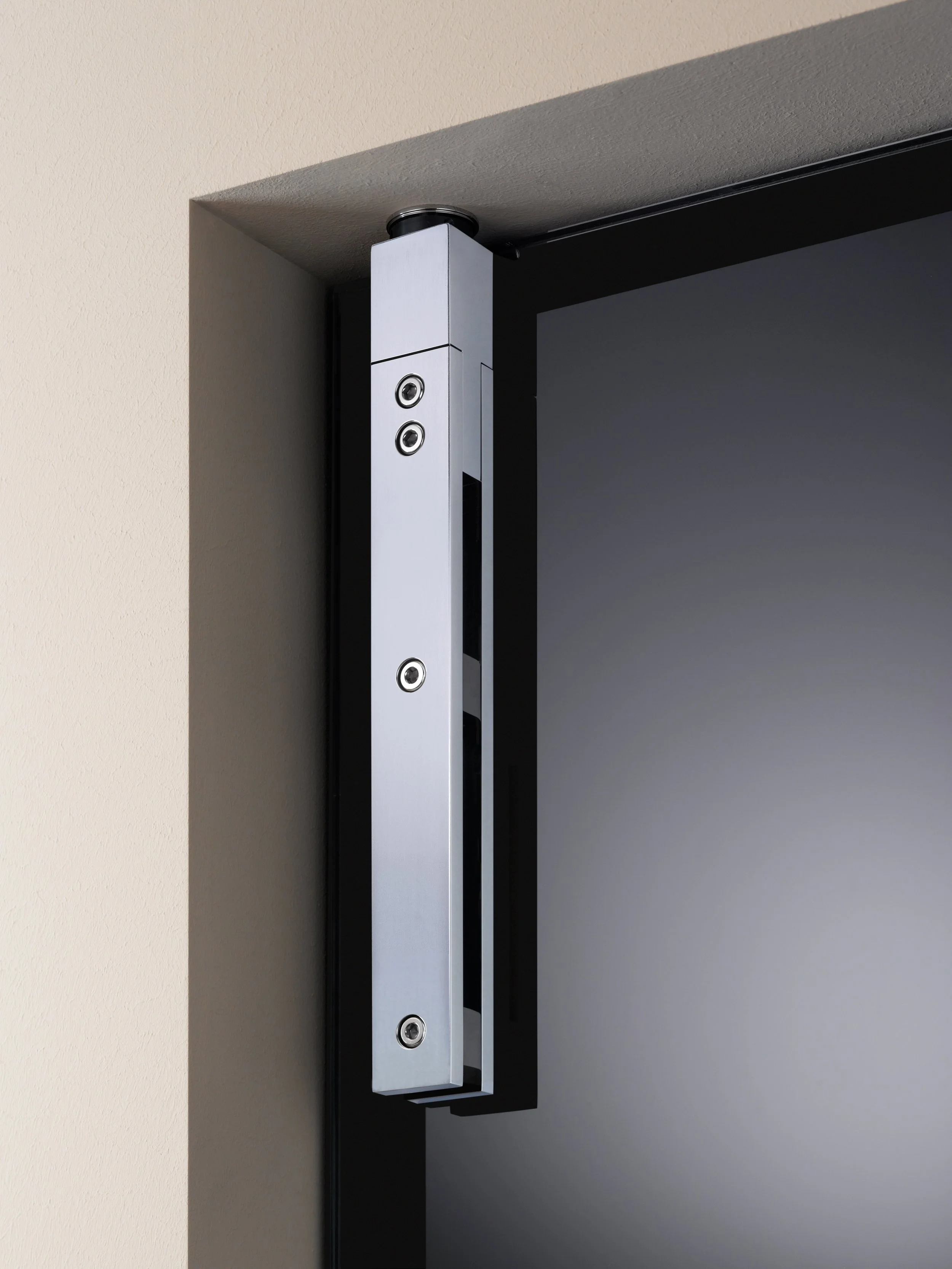

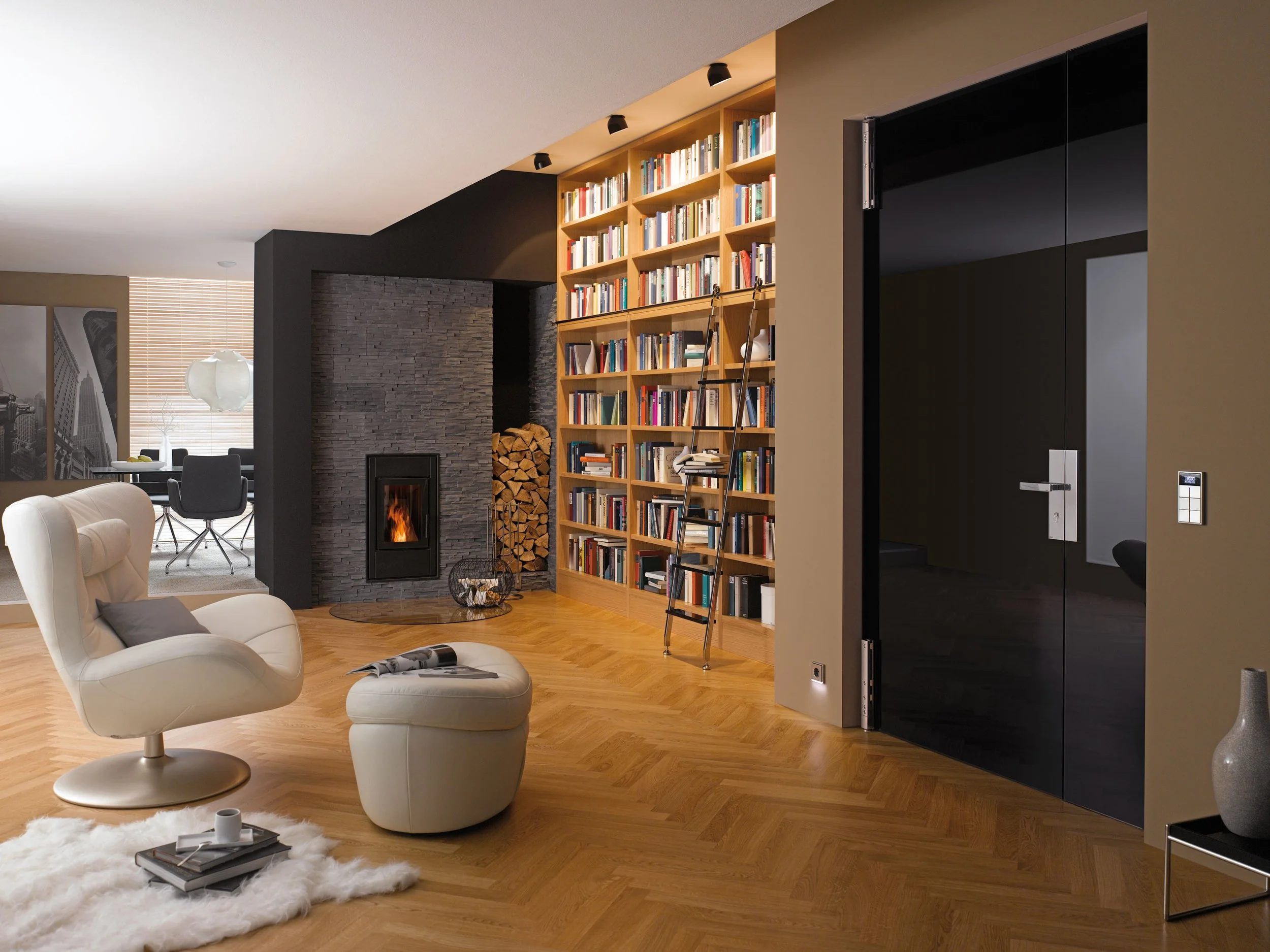

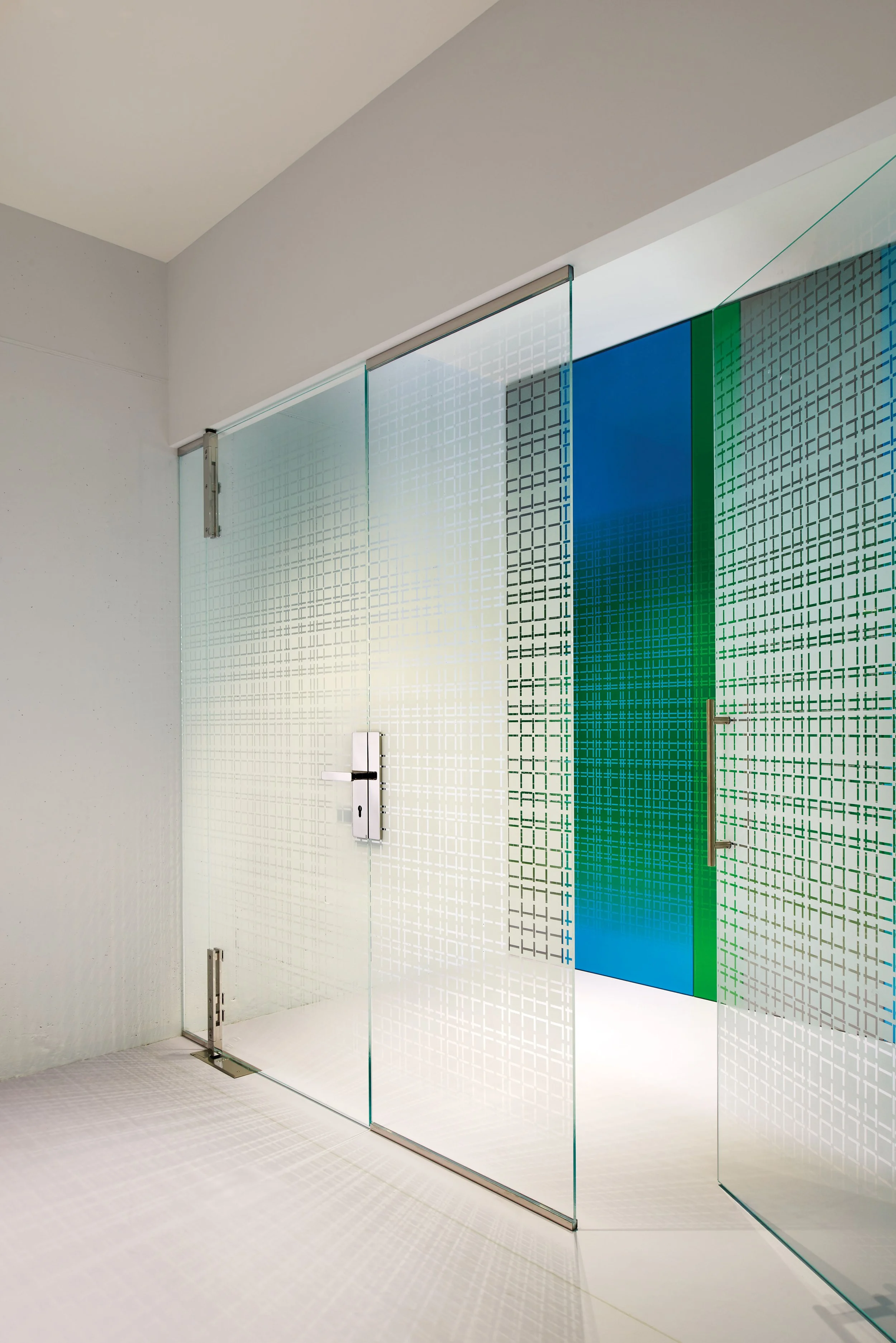

Akzent Pivot : Short Free-Swing
Model : DT.8560.AR
Max. 176 Lbs.
Suitable for glass up to 1/2" up to 10' height
Pivot rod is solid stainless steel 1 9/16" x 3/8", pre-drilled for mount positions.
Made of V2A (304 grade) stainless steel 100% Made in Germany
FINISHES : Satin Stainless Steel | Polished Stainless Steel | Powder-Coated RAL color | PVD colors | 24K gold plated
Akzent Pivot : Short BTS
Model : DT.8560.AR
Max. 176 Lbs.
Suitable for glass up to 1/2" up to 10' height
Pivot rod is solid stainless steel 1 9/16" x 3/8", pre-drilled for mount positions.
Designed for GEZE TS 500 NV - auto door closer BTS [automatically brings the door to a central position]
Made of V2A (304 grade) stainless steel 100% Made in Germany
FINISHES : Satin Stainless Steel | Polished Stainless Steel | Powder-Coated RAL color | PVD colors | 24K gold plated

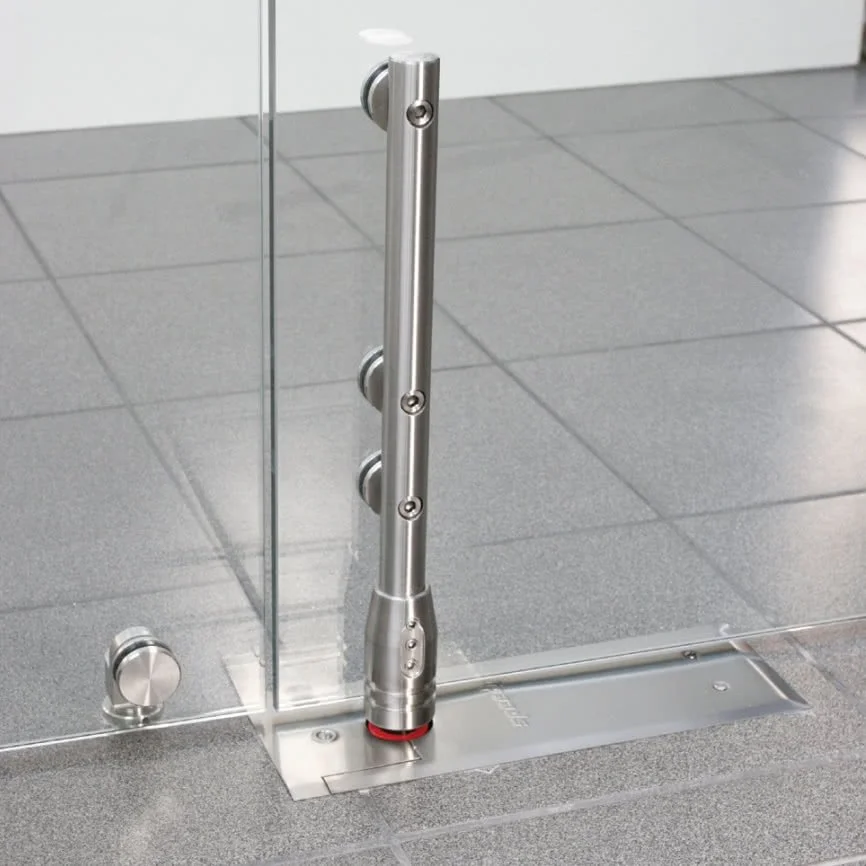

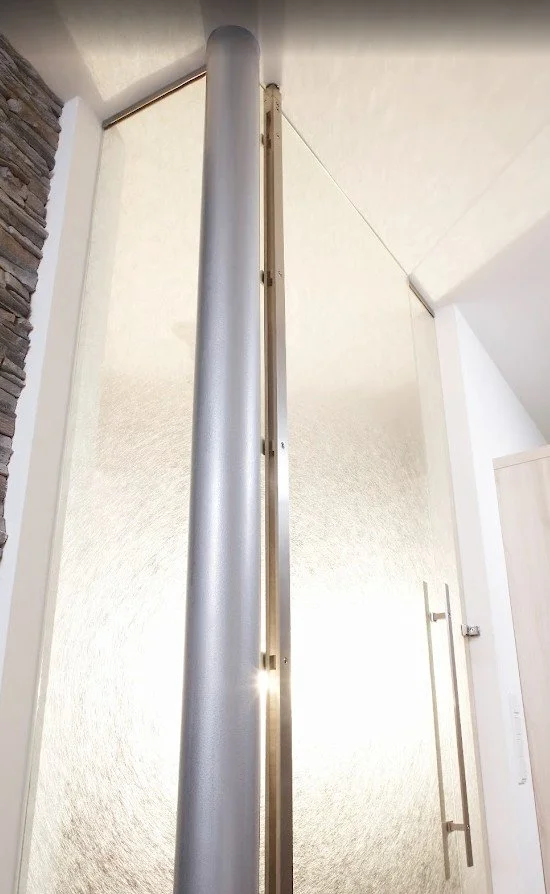

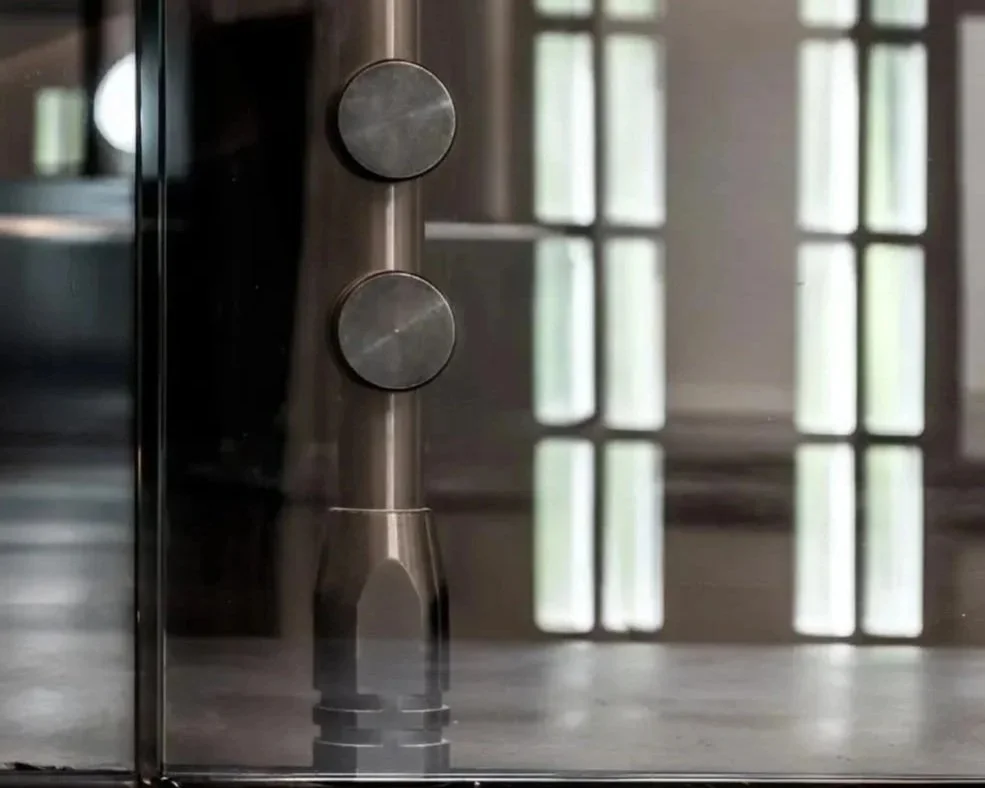

Klassik Pivot : Full Free-Swing
Model : DT.8510.AU
Max. 230 Lbs.
Suitable for glass up to 1/2" up to 10' height
Pivot rod is solid stainless steel 1" diameter, pre-drilled for mount positions.
Designed for GEZE TS 500 NV - auto door closer BTS [automatically brings the door to a central position]
Made of V2A (304 grade) stainless steel 100% Made in Germany
FINISHES : Satin Stainless Steel | Polished Stainless Steel | Powder-Coated RAL color | PVD colors | 24K gold plated
Klassik Pivot : Full BTS
Model : DT.8550.AU
Max. 230 Lbs.
Suitable for glass up to 1/2" up to 10' height
Pivot rod is solid stainless steel 1" diameter, pre-drilled for mount positions.
Designed for GEZE TS 500 NV - auto door closer BTS [automatically brings the door to a central position]
Made of V2A (304 grade) stainless steel 100% Made in Germany
FINISHES : Satin Stainless Steel | Polished Stainless Steel | Powder-Coated RAL color | PVD colors | 24K gold plated
Klassik Pivot : Short Free-Swing
Model : DT.8565.AU
Max. 230 Lbs.
Suitable for glass up to 1/2" up to 10' height
Pivot rod is solid stainless steel 1" diameter, pre-drilled for mount positions.
Made of V2A (304 grade) stainless steel 100% Made in Germany
FINISHES : Satin Stainless Steel | Polished Stainless Steel | Powder-Coated RAL color | PVD colors | 24K gold plated
Klassik Pivot : Short BTS
Model : DT.8560.AU
Max. 230 Lbs.
Suitable for glass up to 1/2" up to 10' height
Pivot rod is solid stainless steel 1" diameter, pre-drilled for mount positions.
Designed for GEZE TS 500 NV - auto door closer BTS [automatically brings the door to a central position]
Made of V2A (304 grade) stainless steel 100% Made in Germany
FINISHES : Satin Stainless Steel | Polished Stainless Steel | Powder-Coated RAL color | PVD colors | 24K gold plated
Custom Geometric Styles: Available in two distinct design languages:
Akzent (Square Style) : Sharp, crisp lines for a bold, architectural statement.
Klassik (Round Style) : Soft, cylindrical profiles for a contemporary, organic look.
Versatile Mounting Configurations:

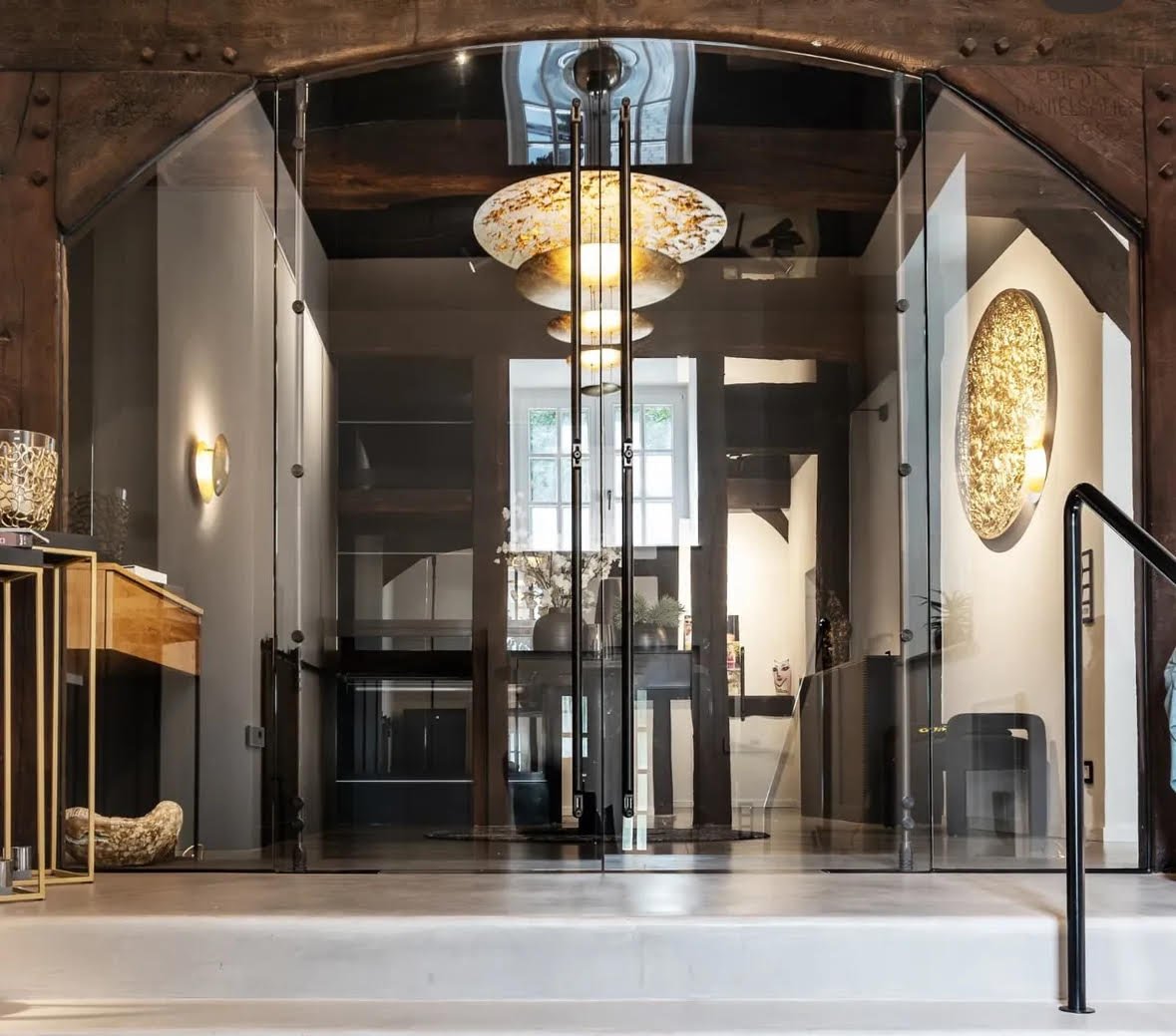

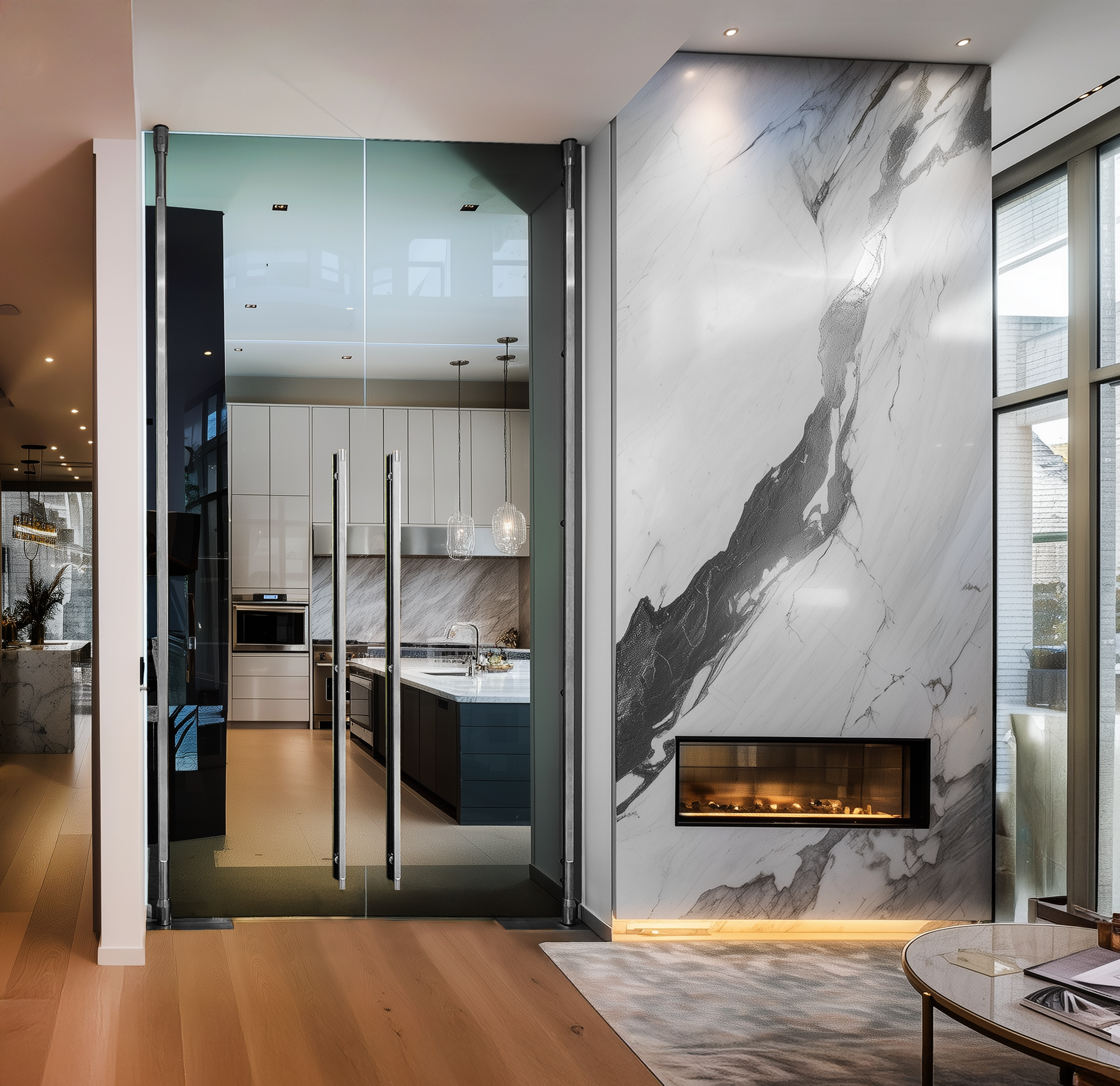

Full Floor-to-Ceiling: Features a continuous vertical profile for maximum stability and a dramatic, seamless visual impact.
Patch Fitting Style: Utilizes discrete corner and side brackets to provide an "all-glass" look with minimal hardware interference.
-
![A stylized black and white illustration of a crown with five points.]()
SPEC_DT.8510.AR_BTS
Download Spec (PDF)
-
![Black silhouette of a person and a dog against a black background.]()
SPEC_DT.8510.AR_FREE-SWING
Download Spec (PDF)
-
![Black and white drawing of a dog with a friendly expression, facing forward.]()
SPEC_DT.8560.AR_BTS
Download Spec (PDF)
-
![Black and white street scene with multiple pedestrians crossing and a building in the background.]()
INSTALL GUIDE
Download (PDF)
-
![The image is a black silhouette of a dog standing on all fours against a transparent background.]()
SPEC_DT.8510.AU_Full_Free-Swing
Download Spec (PDF)
-
![Black silhouette of a person running with a briefcase against a white background.]()
SPEC_DT.8550.AU_Full_BTS
Download Spec (PDF)
-
![Black Nike sneaker with white Nike swoosh logo and sole, viewed from the side.]()
SPEC_DT.8560.AU_Short_BTS
Download Spec (PDF)
-
![An illustration of a Darth Vader mask from Star Wars.]()
SPEC_DT.8565.AU_Short_Free-Swing
Download Spec (PDF)
-
![MWE locking Handle]()
-
![MWE locking Handle]()
-
![MWE latch lever handle]()
-
![MWE locking Handle]()
-
![MWE locking Handle]()
-
![MWE locking pull]()
-
![MWE locking pull]()
30mm x 30mm [1-3/16”x1-3/16”] sq.
