HANDLE HARDWARE

Latches

MODEL NO. : TD.8656.AE

DOWNLOADS
ORDER NOW

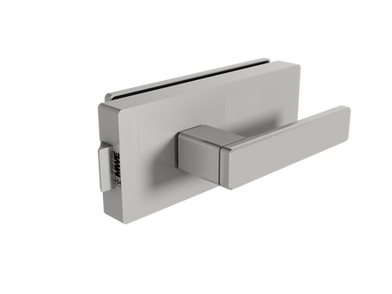

TD.8656.AE | Passage Latch

  • Latch Box : 165mm (6-1/2”) x 70mm (2-3/4”)

    Lever Handle : 122.5mm (4-13/16”) x 25mm (1”) - 8mm (5/16”) grip thickness

  • Requires 2 × Ø45mm (1-3/4”) 60mm (2-3/8”) from glass edge to center 61mm (2-3/8”) distance apart

  • Made of V2A (304 grade) stainless steel

    available in :

  • Specify Left or Right Handing on Purchase Order

    Suitable for door thickness 8mm (5/16”) up to 10mm (3/8”), 12.7mm (1/2”) by request

Close-up of a metallic slot or dispenser on a machine with blue and black surfaces.

TD.8656.AE.WC | Privacy Latch

  • Latch Box : 165mm (6-1/2”) x 70mm (2-3/4”)

    Lever Handle : 122.5mm (4-13/16”) x 25mm (1”) - 8mm (5/16”) grip thickness

  • Requires 2 × Ø45mm (1-3/4”) 60mm (2-3/8”) from glass edge to center 61mm (2-3/8”) distance apart

  • Made of V2A (304 grade) stainless steel

    available in :

  • Specify Left or Right Handing on Purchase Order

    Suitable for door thickness 8mm (5/16”) up to 10mm (3/8”), 12.7mm (1/2”) by request

Close-up of a gold-colored bathtub faucet and temperature control handle.
  • The image shows a clock with a black background, white hour and minute hands, and white clock numbers.

    SPEC_TD.8656.AE.MF

    Download Spec (PDF)

  • A black-and-white line drawing of a person holding a briefcase, standing on a globe.

    SPEC_TD.8656.AE.MF.WC

    Download Spec (PDF)

  • Black and white illustration of a person lifting weights.

    SPEC_TD.8656.AE.SF

    Download Spec (PDF)

  • A person holding a mug with the text 'Good Vibes' written on it.

    SPEC_TD.8656.AE.SF.WC

    Download (PDF)
