1-3/4” door thickness
Maximum door dimension: DW= 48+48” - DH = 120”
(3) hinges for door weight up to 110 lbs.
(4) hinges for door weight up to 145 lbs.
-
-
ECLISSE BIAS® [Anti-Slam] An oil piston that slows and softly closes the door in one direction
ECLISSE BIAS® DS [Anti-Slam] An oil piston that slows and softly closes the door in both directions
ECLISSE ANTI-SLAM-HD (ADA compliant) Heavy Duty is a soft closer for sliding pocket door systems fully integrated inside the track and invisible from outside. An oil piston which slows down the door in both directions
Suitable for glass and wooden doors.
May be paired with Self-Closing System and Double Doors Co-Ordination (the door panel will protrude by ~2-3/8").
Meets ADA requirements : less than 5 lbs. of pressure to open the door.
up to 330 lbs.
ECLISSE PUSH-PULL : Push the door deeper into the pocket to release and pull the door to a closed position permitting the doors edge to be clear of hardware.
Suitable for glass and wooden doors
Suitable for retrofit installs thanks to the extractable track ECLISSE
May be paired with ECLISSE BIAS, ECLISSE BIAS DS, Double door coordination or Double door coordination for SYNTESIS®.
Note: double door models require an accessory for each door panel.
Specify (S) for ECLISSE SYNTESIS® Collection | (C) for ECLISSE Classic Collection
Note suitable for Telescopic or Circular applications.
up to 110 lbs.
DOUBLE DOOR CO-ORDINATION WITH BIAS : Open and close two bi-parting doors simultaneously by moving only one panel.
SELF-CLOSING : A counterweight installed permits the door to bring itself to a close.
Suitable for retrofit or order with It can be installed on Single, Double, Luce Single, Luce Double and Unilateral ECLISSE systems.
Applicable only on wooden doors.
ANTI-WARP JAMB PROFILE : An extruded aluminum guide designed to fit at the bottom of sliding pocket doors. Easy to install on existing doors, requiring a 3/4” x 3/4” groove milled at the base of the door to prevent swelling from humidity, ensuring smooth and easy sliding during all seasons.
LUCE KIT : Wiring Channel (2x6 wall frame kits only) up to (5) electric boxes per side.
-
Pre-cut frame pieces fit wood or metal studs and assemble quickly with few screws. Ensures a strong pocket and even door space.
See VIDEO for assembly
-
The unassembled stud wall frame (KIT) is compact, easy to transport, handle, and store (over 50 pieces fit in one square meter). It lets you choose the internal passage size (2-3/8" or 4-3/8") on-site based on wall thickness, which can be adjusted during installation. The innovative interlocking system means no screws or tools are needed, making assembly quick and easy.
Long lasting and paintable The frame is a durable anodized aluminum to prevent oxidation and then primer-coated to facilitate paint adhesion.
The frame profile weighs about 1.35 lbs/ft.
The frame is designed to avoid drywall from cracking around the door.
The open structure is 20% stronger against side bending than similar products on the market. The reinforced vertical and horizontal bars make it much sturdier than frames made from a single metal sheet, which are common in closed structures.
-
Eclisse offers a 12 year warranty
Download Warranty Document for full details
-
Indicate Single, Double bi-parting, Double Bi-Part, Bi-Pass, Double Bi-Pass
(2×4) : 4-3/4” finished wall thickness OR (2×6) : 6-3/4" finished wall thickness
Door dimensions
Handle hardware finish aluminum chrome, champagne, bronze, tobacco or white
Optional accessories
Contact us : +1 (203) 816-8508 | email : eclisse@betterbuildinghardware.com
“See Less
expect more
from your doors.”
ECLISSE Syntesis: trim-less sliding pocket doors and flush hinged doors.
SYNTESIS
ECLISSE Syntesis Collection features trim-free sliding pocket doors and concealed jamb hinged doors for a clean, minimalist appearance.

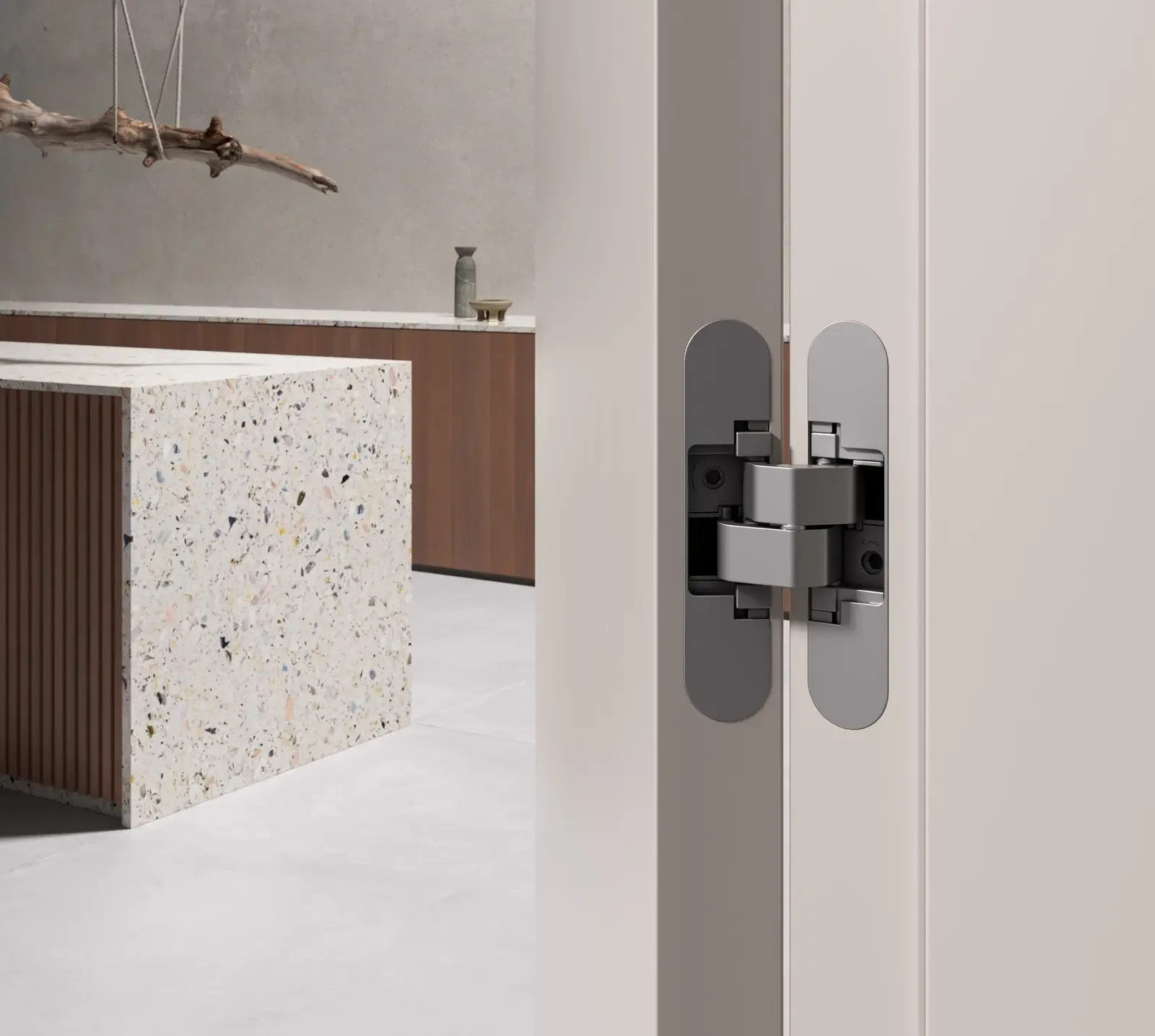

The adjustable concealed hinge systems for residential doors
The ANSELMI brand makes concealed hinges for standard doors up to 80 kg (177 lb). Designed for flush-door setups, they come in several models and premium finishes. The system adjusts in three dimensions and provides long-lasting, maintenance-free performance.

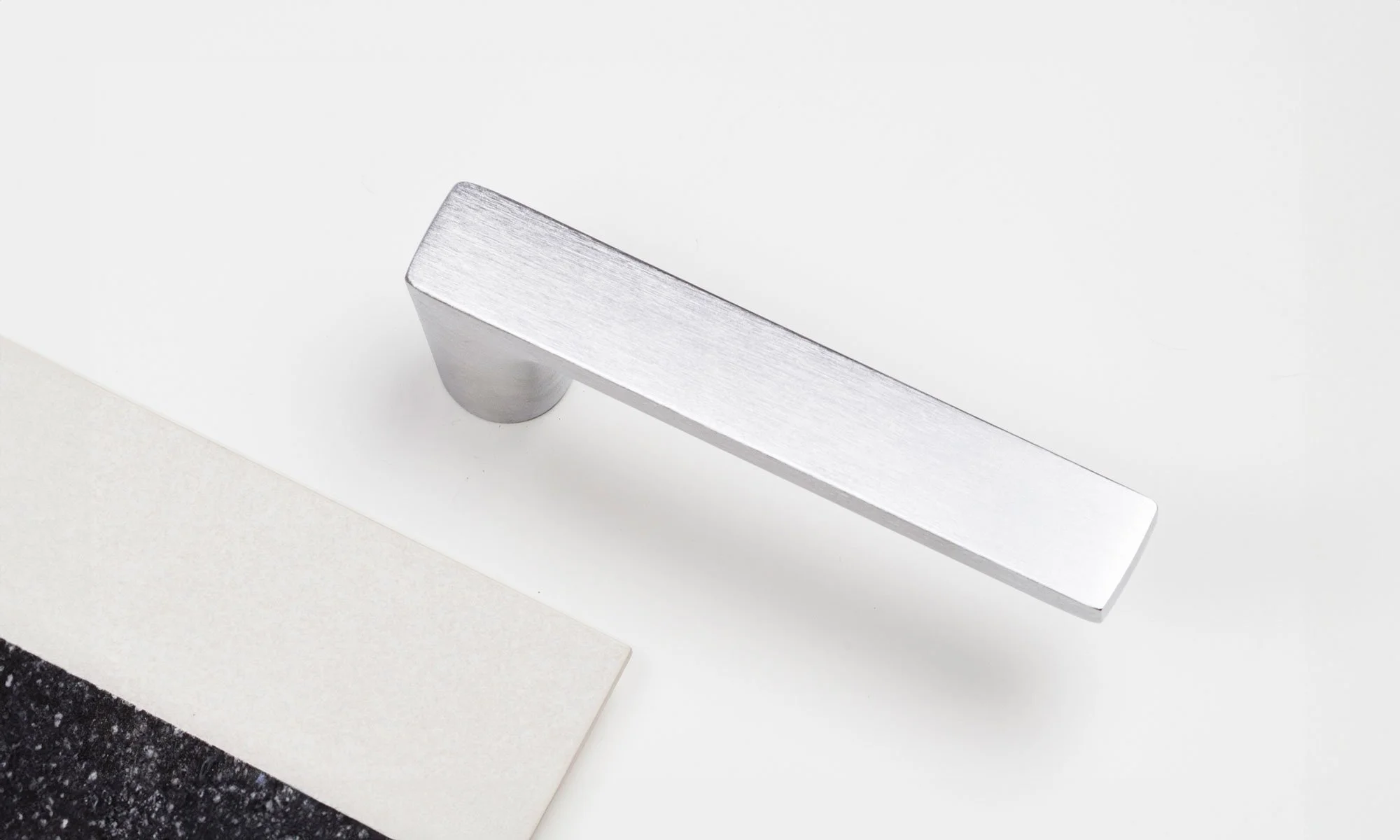

NUDA | The first lever only
NUDA is the only handle collection without a rose or visible gasket. Verum’s patented technology makes installing this ultra-minimal look easy. Featuring clean designer levers in a variety of trending finishes, this truly is functional art.
SYNTESIS® Hinge Door
SYNTESIS® Pocket LUCE
SYNTESIS® Assembly/Installation : Slide frame
SYNTESIS® Assembly/Installation : pocket door frame kit
SYNTESIS® Assembly/Installation : hinged door
-
-
UPGRADE TO ACOUSTIC (38 dB (-1; -3) noise cancellation)
INCLUDE ANTI-WARP PROFILE JAMB PROFILE
ADD LUCE KIT (2x6 only) (electrical outlets or switch)
ECLISSE BIAS® (One direction)
ECLISSE BIAS® DS (Both directions)
ECLISSE ANTI-SLAM-HD ADA compliant
ECLISSE ANTI-SLAM-HD ADA compliant with SELF-CLOSING
DOUBLE DOOR CO-ORDINATION WITH BIAS® (One direction)
DOUBLE DOOR CO-ORDINATION WITH BIAS® DS (Both directions)
-
-
UPGRADE TO ACOUSTIC (38 dB (-1; -3) noise cancellation)
INCLUDE ANTI-WARP PROFILE JAMB PROFILE
ADD LUCE KIT (electrical outlets or switch)
ECLISSE BIAS® (One direction)
ECLISSE BIAS® DS (Both directions)
ECLISSE ANTI-SLAM-HD ADA compliant
ECLISSE ANTI-SLAM-HD ADA compliant with SELF-CLOSING
-
-
UPGRADE TO ACOUSTIC (38 dB (-1; -3) noise cancellation)
INCLUDE ANTI-WARP PROFILE JAMB PROFILE
ADD LUCE KIT (electrical outlets or switch)
ECLISSE BIAS® (One direction)
ECLISSE BIAS® DS (Both directions)
ECLISSE ANTI-SLAM-HD ADA compliant
ECLISSE ANTI-SLAM-HD ADA compliant with SELF-CLOSING
Syntesis Slide
-
A perfect aesthetic result
Designed to respond to the desires of modern interior design
ECLISSE Syntesis Slide Double is the frame without external finishes that hides two sliding pocket doors. This trim-less no-jamb system is fully integrated within the wall and allows the creation of an elegant and minimalist design.
-
The perfect combination of technology and design
Nothing to stop the look: no jambs, no architraves
ECLISSE Syntesis Slide is the frame for flush pocket doors without jambs able to disappear completely in the wall. The absence of jambs facilitates the integration of the sliding surface, merging technology and design in the name of modernity.
-
An exquisite modern character
When should you choose this product?
ECLISSE Syntesis Slide is perfect for minimalist environments to give you a clean look.

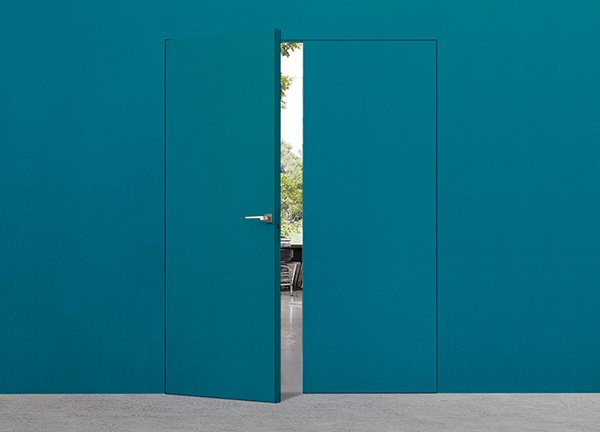

Syntesis Swing
-
Out-swing [Pull]
Total freedom for your interior design
ECLISSE Syntesis Swing lets you fit a hinged door without visible jambs, flush with the wall. With or without a header, it provides seamless integration of door, wall, and ceiling.
-
In-swing [Push]
Blend in or stand out? Paint the door the same color as the wall to hide it, or finish it with lacquer, trim, or prints to make it a clear design feature.
-
An exquisite modern character
When should you choose this product?
ECLISSE Syntesis Slide is perfect for minimalist environments to give you a clean look.
Syntesis Luce
-
Sliding, minimal and hi-tech
Elegance and functionality in one product
ECLISSE Syntesis Luce encloses a plurality of performances, combining aesthetics with practicality. It perfectly integrates with the wall hiding the door and it is ready for the insertion of electrical wiring.
