Industrial
LADDER
-
Specify :
SL.6022.AK : SQUARE STRINGERS (Akzent “accent”) 20x30mm (13/16”x1-3/16”) rectangular stainless steel tube.
DESIGNED TO TELESCOPE
All ladder parts — safety side rails, base wheels, and steps — will use the same selection.
-

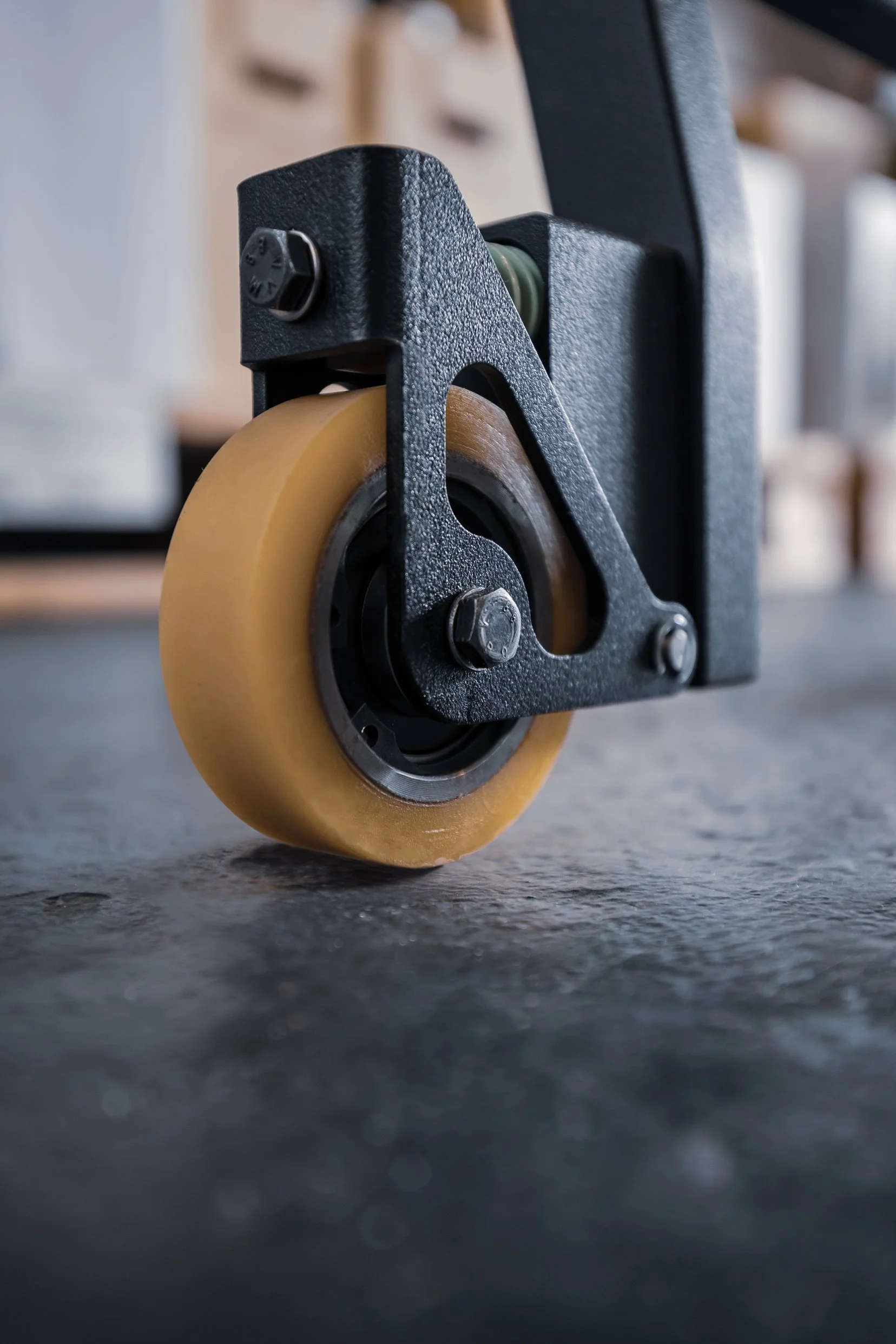

Industrial has a rugged appearance that comes with some major benefits. The wider base wheels have added spring to allow the ladder to roll over rough surfaces.
Thanks to it’s ability to telescope, this ladder model may be combined with base wheels.
Ladder sits safely at a 10° angle

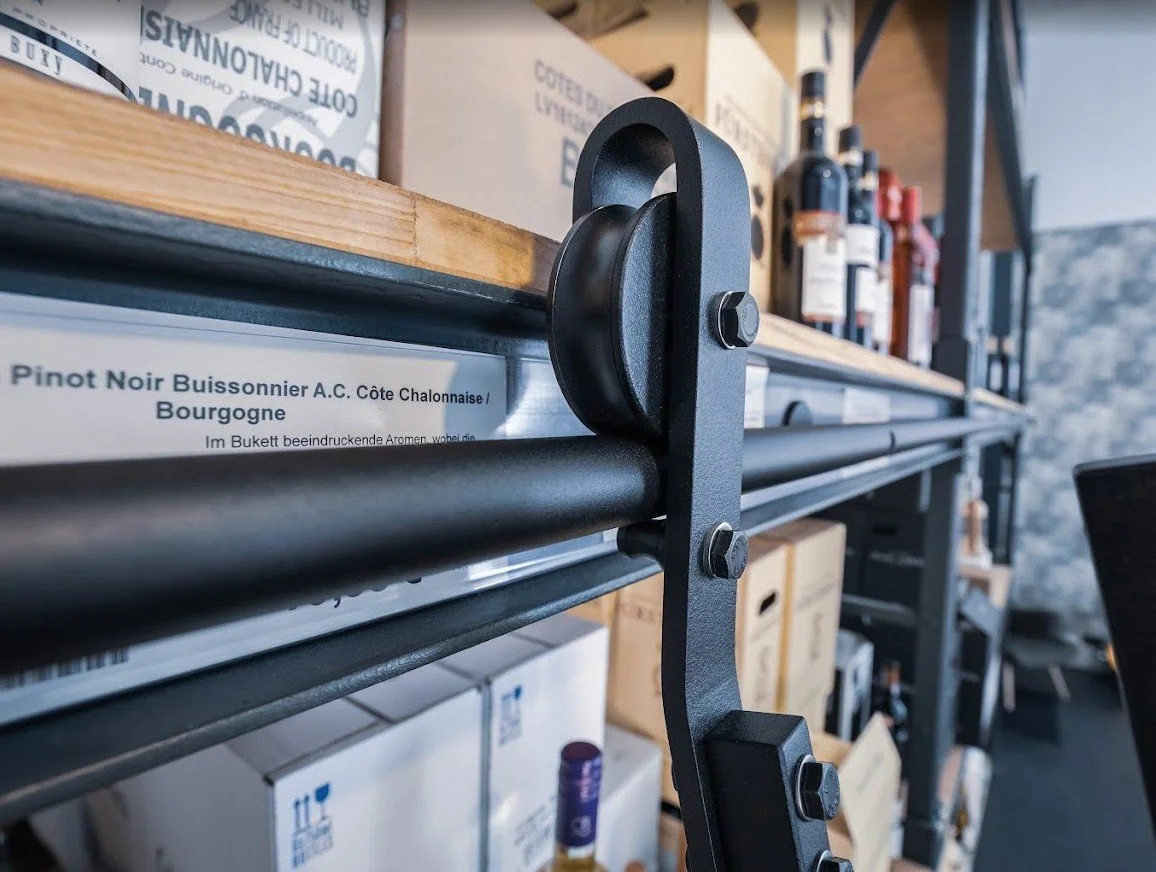

Ø13/16″ Rails are available in custom lengths and are supplied pre-drilled for wall mounts. Learn more about MWE precision mounting.
Weight varies by height and step/tread or rung selection; review the WEIGHT CHART to determine specific weight.
Distance between steps is 250mm (9-13/16") which has been tested and confirmed to be the safest and most ergonomic.
Depth with Safety Side Rails > 6-1/2" (165mm) | without Safety Side Rails > 3-1/8" (80mm)
MWE ladders can carry up to 330 Lbs.
-
Center rail height 4000mm (157-1/2")
-
Made of V2A (304 grade) stainless steel
available in :
600 grit satin stainless steel
Mirror polished stainless steel
Powder coated (specify RAL color code)
24k gold plated matte
24k gold plated polished

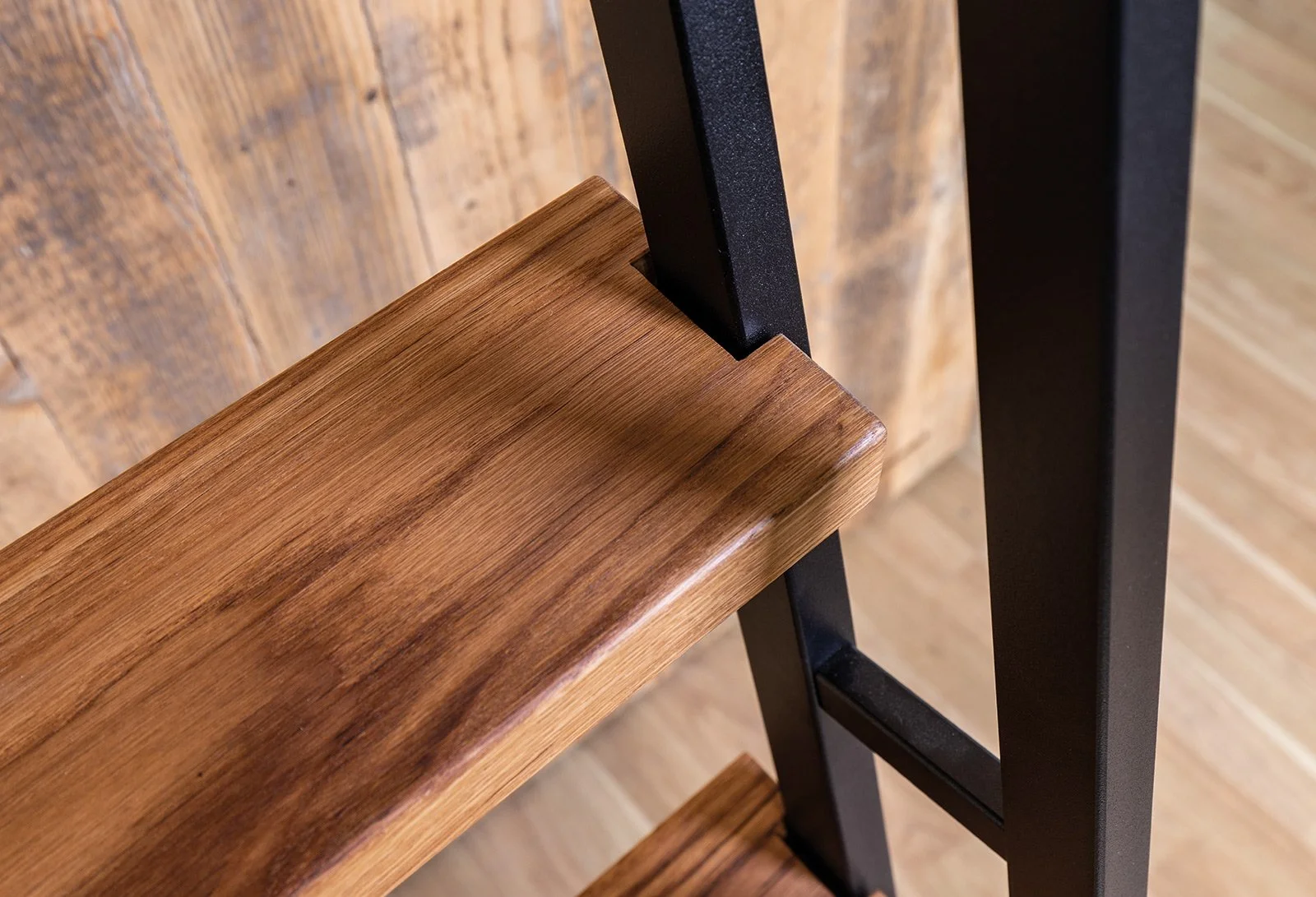

Select from a variety of wood finishes for the steps, this model is not designed for metal rungs or larger 80mm (3-1/8”) wide treads.
-
Ladders ship fully assembled unless otherwise noted. While uncommon, it is recommended to ensure all screws are tightened to avoid unwanted movement
Assembly of the rail length may be necessary due to length and will be illustrated on purchase documents for final approval.
Installation instructions are available for the installation of the rail mounts a video is also available for download
If assembly is necessary, instructions are available
For a drywall install, the 40mm (1-9/16”) and 50mm (1-15/16”) diameter mounts are recommended and solid blocking is required for the entire length of the rail. For mounting onto wood cabinetry or shelving, smaller rosette diameters may be specified.
-
Use of ladders is at the owner’s risk. Ladders are intended for moderate to light use, and the user should always use caution. Customers should refer to their quote/sales order for further instruction regarding secure installation and use. Better Building Hardware does not accept any responsibility for any damage resulting from noncompliance with manufacturer recommendations. Additionally, Better Building Hardware does not accept any responsibility for any damage resulting from normal use of any ladder product or component.
Manufacturer Requirements
Safety side rails should be considered on all ladders and are required for ladders at or above 3000mm (118-1/8”) center rail height above finished floor
Loft applications require handles/grab bars installed to aid in existing and entering the ladder (handles/grab bars may be supplied by others)
Solid blocking is required for mounting of the rail, spacing of wall mounts is to be within 900mm (35-7/16”)
General Safety Recommendations
Extreme caution should be taken when ascending and descending ladders
Children should be supervised when using ladders
A spotter is recommended, some models may shift while ascending and descending which is common and within the tolerance set by the manufacturer
Slip resistant grip tape is recommended
Hook ladders and telescoping models: Do not ascend ladders while in a vertical position
Utilizing steps near the mounted rail is not recommended, additional handles/grab bars are recommended (handles/grab bars may be supplied by others)
-
Shipments are sent via direct-air/FedEx.
Lead times vary from 4-10 weeks, finish and height are factors of lead time.
See further information on shipping at FAQ_SHIPMENT RECEIVING
“Built for
the blueprints.
Styled for
the boardroom.”
Industrial is a ladder model all about it’s function. the reimagined style is a benefit.
