Specify :

SL.6004.AK : SQUARE STRINGERS (Akzent “accent”) 20x30mm (13/16”x1-3/16”) rectangular stainless steel tube.

SL.6004.KL : ROUND STRINGERS (Klassik “classic”) Ø30mm (1-3/16”) stainless steel tube.

UPGRADE TO TELESCOPE

SL.6005.AK : SQUARE STRINGERS (Akzent “accent”) 20x30mm (13/16”x1-3/16”) rectangular stainless steel tube.

SL.6005.KL : ROUND STRINGERS (Klassik “classic”) Ø30mm (1-3/16”) stainless steel tube.

All ladder parts — safety side rails, base wheels, and steps — will use the same selection.

SELECT Treads/steps

MODELS:

• SL.6017.T : 80mm (3-1/8”) wide TEAK

• SL.6016.B : 80mm (3-1/8”) wide BEECH

• SL.6015.A : 80mm (3-1/8”) wide MAPLE

• SL.6016.E : 80mm (3-1/8”) wide WHITE OAK

• SL.6017.K : 80mm (3-1/8”) wide CHESTNUT

• SL.6016.K : 80mm (3-1/8”) wide CHERRY

• SL.6018.N : 80mm (3-1/8”) wide WALNUT

• SL.6015.Z : 80mm (3-1/8”) wide ZEBRANO

• SL.6016.W : 80mm (3-1/8”) wide WENGE

• RUNG : SL.6011.KL : Ø13/16 | SL.6011.AK : 13/16” sq.

• SL.6013 : 80mm (3-1/8”) wide

• SL.6070 : 80mm (3-1/8”) powder-coated

• SL.6070.PPC : 80mm (3-1/8”) partially powder-coated

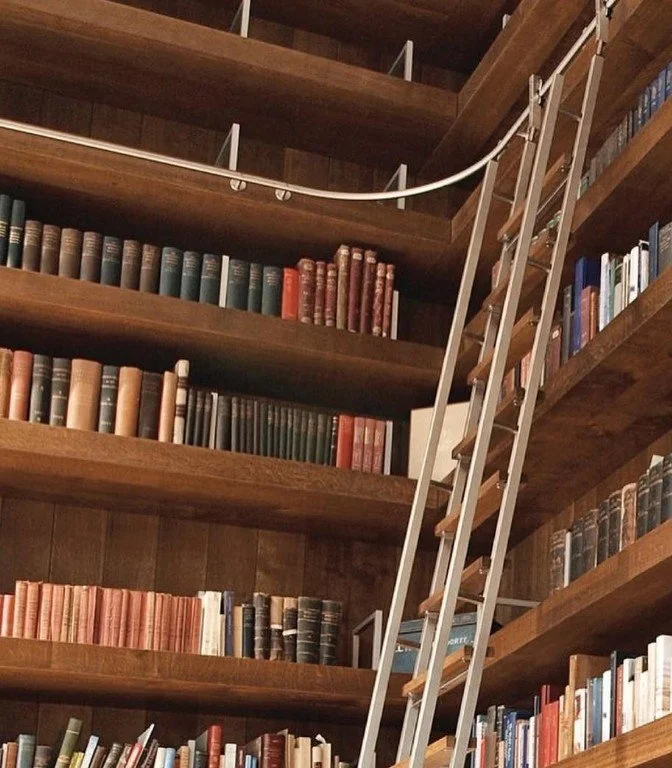

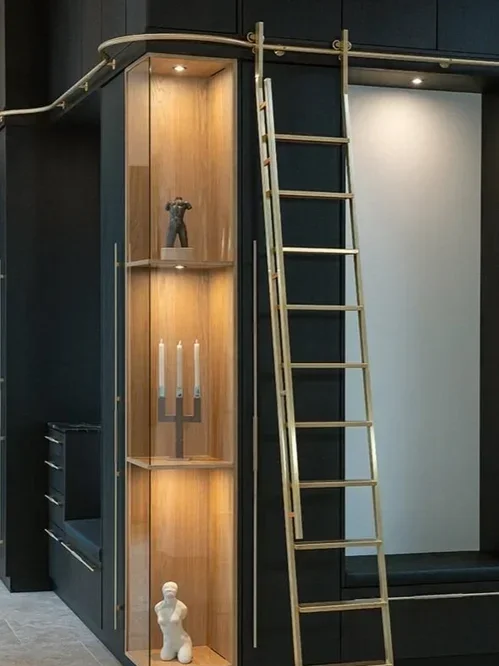

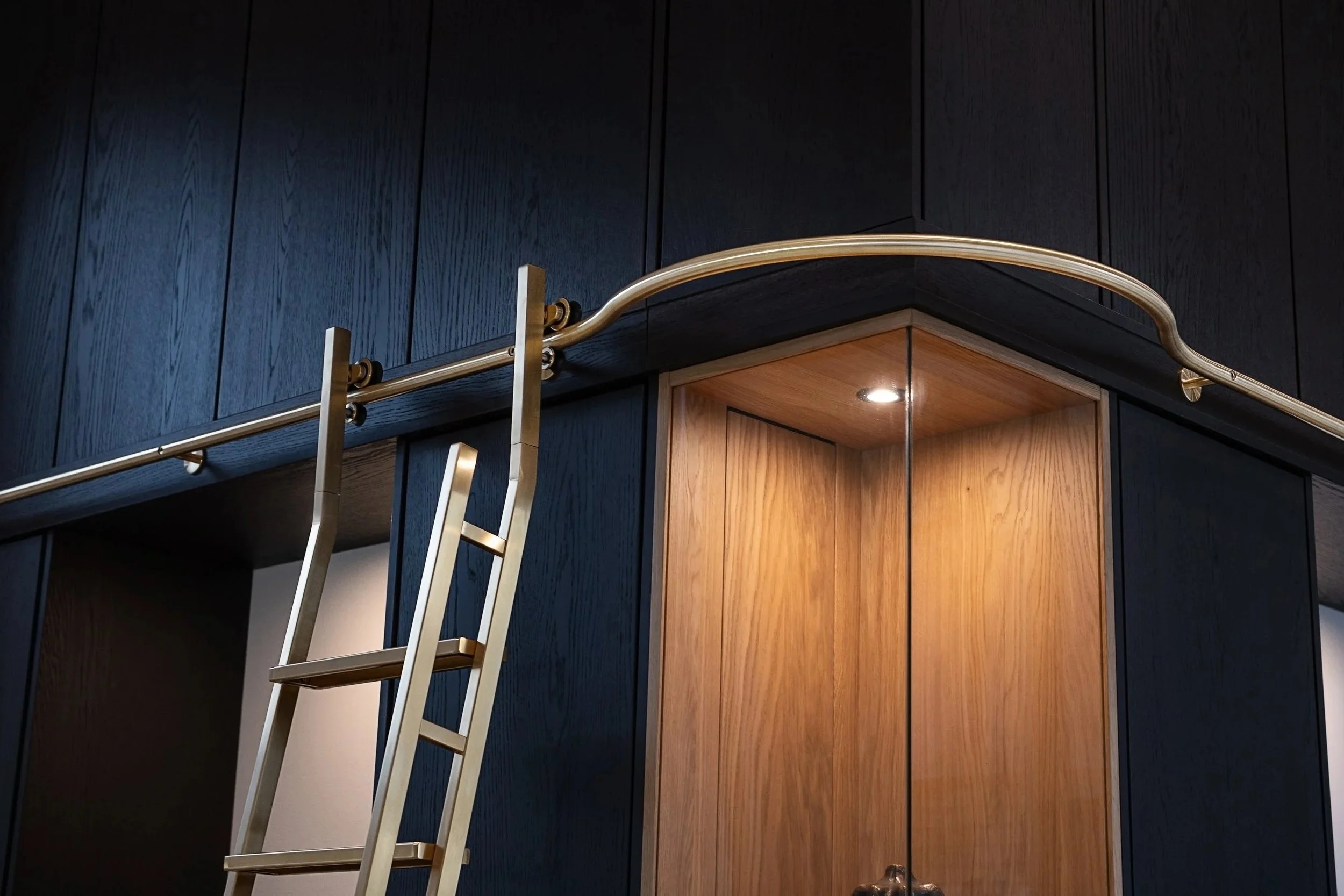

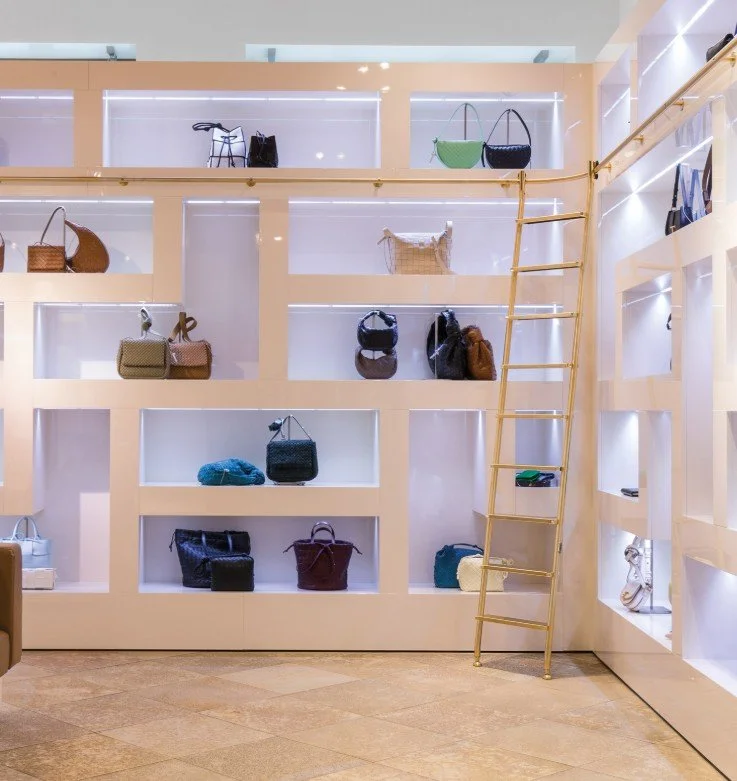

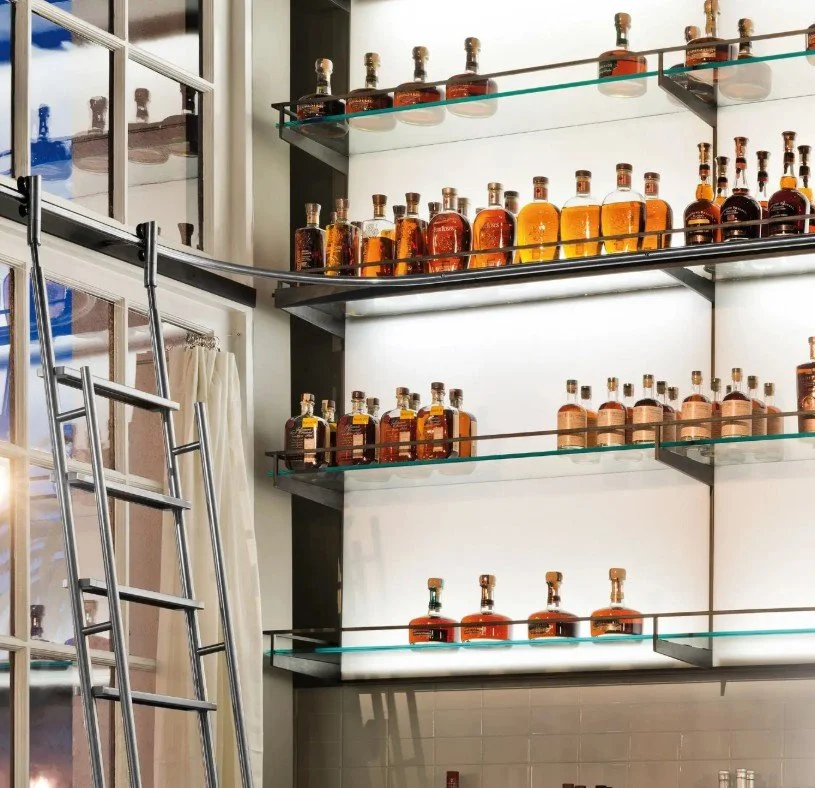

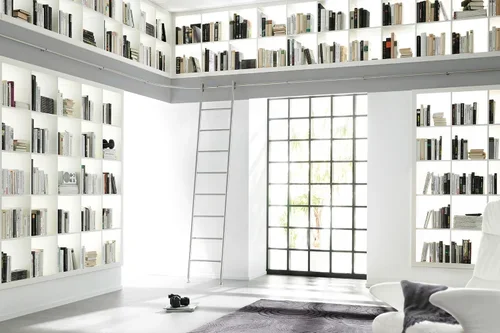

Vario ladders feature pivoting wheels at the top to easily navigate curved and straight rails by simply lifting the ladders base feet from the floor and allow the wheels to do the work. Accommodate 90° inside or outside corners or custom curves.

Ladder sits safely at a 10° angle

Ø1″ Rails are available in custom lengths and are supplied pre-drilled for wall mounts. Learn more about MWE precision mounting.

Weight varies by height and step/tread or rung selection; review the WEIGHT CHART to determine specific weight.

Distance between steps is 250mm (9-13/16") which has been tested and confirmed to be the safest and most ergonomic.

Depth with Safety Side Rails > 6-1/2" (165mm)  | without Safety Side Rails > 3-1/8" (80mm)

MWE ladders can carry up to 330 Lbs.

Review Safety Information for further details

Made of V2A (304 grade) stainless steel

available in :

SATIN STAINLESS STEEL

POLISHED STAINLESS STEEL

24K GOLD PLATED

POWDER COATED

Steps/Treads/rungs are available in various styles, select stainless steel, wood or powder coated.

Pro Tip : Wood steps and flat 80mm (3-1/8”) treads are the more comfortable selections

• Ladders ship fully assembled unless otherwise noted. While uncommon, it is recommended to ensure all screws are tightened to avoid unwanted movement

• Assembly of the rail length may be necessary due to length and will be illustrated on purchase documents for final approval.

• Installation instructions are available for the installation of the rail mounts a video is also available for download

• If assembly is necessary, instructions are available

• For a drywall install, the 40mm (1-9/16”) and 50mm (1-15/16”) diameter mounts are recommended and solid blocking is required for the entire length of the rail. For mounting onto wood cabinetry or shelving, smaller rosette diameters may be specified.

Use of ladders is at the owner’s risk. Ladders are intended for moderate to light use, and the user should always use caution. Customers should refer to their quote/sales order for further instruction regarding secure installation and use. Better Building Hardware does not accept any responsibility for any damage resulting from noncompliance with manufacturer recommendations. Additionally, Better Building Hardware does not accept any responsibility for any damage resulting from normal use of any ladder product or component.

Manufacturer Requirements

Safety side rails should be considered on all ladders and are required for ladders at or above 3000mm (118-1/8”) center rail height above finished floor

Loft applications require handles/grab bars installed to aid in existing and entering the ladder (handles/grab bars may be supplied by others)

Solid blocking is required for mounting of the rail, spacing of wall mounts is to be within 900mm (35-7/16”)

General Safety Recommendations

Extreme caution should be taken when ascending and descending ladders

Children should be supervised when using ladders

A spotter is recommended, some models may shift while ascending and descending which is common and within the tolerance set by the manufacturer

Slip resistant grip tape is recommended

Hook ladders and telescoping models: Do not ascend ladders while in a vertical position

Utilizing steps near the mounted rail is not recommended, additional handles/grab bars are recommended (handles/grab bars may be supplied by others)

Shipments are sent via direct-air/FedEx.

Lead times vary from 4-10 weeks, finish and height are factors of lead time.

See further information on shipping at FAQ_SHIPMENT RECEIVING
