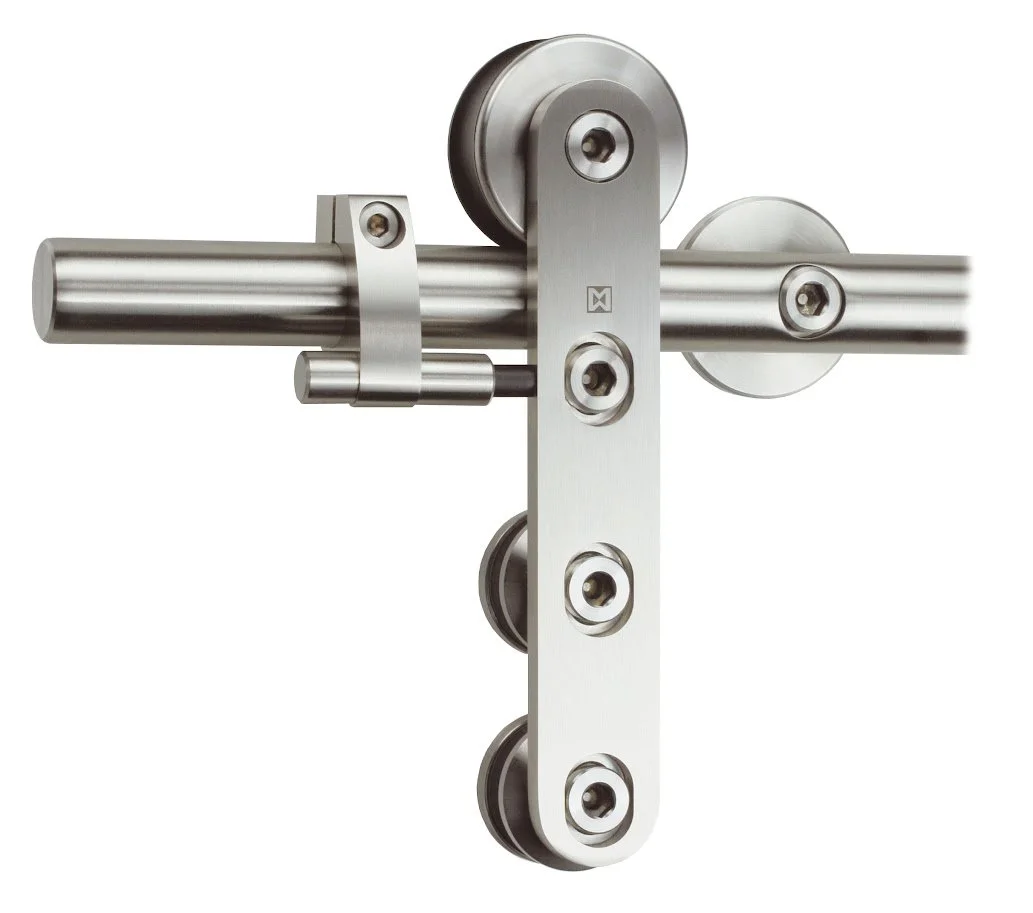

Minimax[ST.1006]

The smallest top mounted barn door wheel is designed for small door panels, cabinetry, displays etc.

  • Starting at $2,035

    (1) Ø13/16” Solid stainless steel rail at 78-3/4“ length

    (2) Minimax wheel assemblies

    (4) Wall mounts supplied with wood lag, plastic expansion anchor, Ø1-9/16” rosette, sleeve for up to 2" projection

    (2) Minimax type stoppers

    (1) Floor guide (specify wood or glass)

    All prices are retail | standard 600 grit Brushed finish

  • Product Information

    max. weight 99 Lbs

    Suitable for wood or glass

    Rail length is custom [rail may be supplied in segments for shipping purposes]

    Rail is solid stainless steel 13/16″ diameter, pre-drilled for wall mount positions. [Visible hexagon head screws add to the design]

    Made of V2A (304 grade) stainless steel 100% Made in Germany

    Finishes available: Brushed 600 grit stainless steel, polished stainless steel, PVD colors, 24K gold plated, burnished, powder coated RAL colors

DOWNLOAD SPEC
