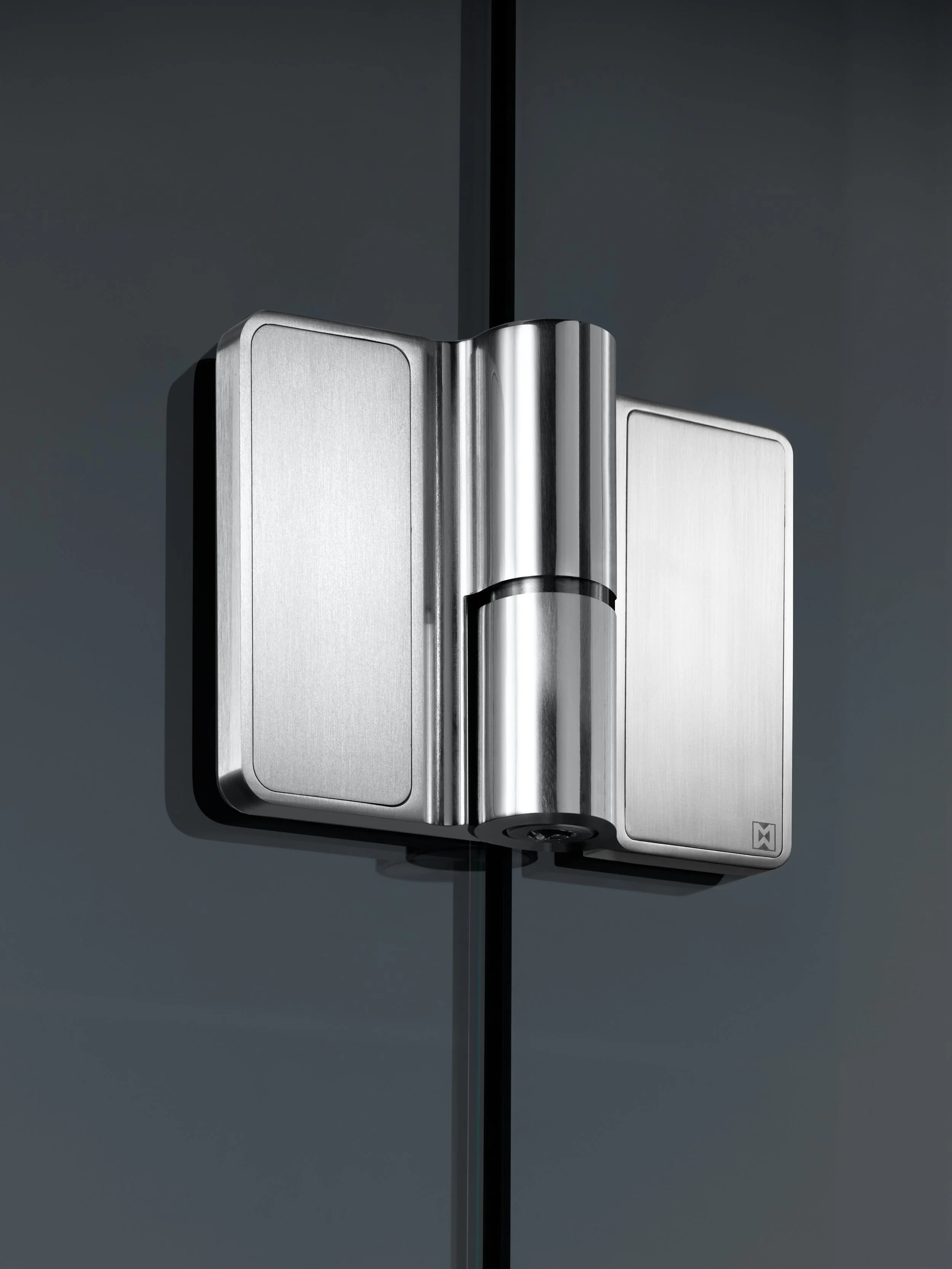

Spirit Hinge

[DU.3340] [DU.3341] [DU.3342] [DU.3343]

A sleek design completely conceals the screw heads for a stylish effect and added water durability. Design permits the door to lift the glass while opening and lower the door upon closing to allow for minimal gaps or planned rubber seal at the doors base.

Contact
Request Quote
Finish Options
Accessories
Installation Instructions
  • Close-up view of metallic door hinge or pivot mechanism.

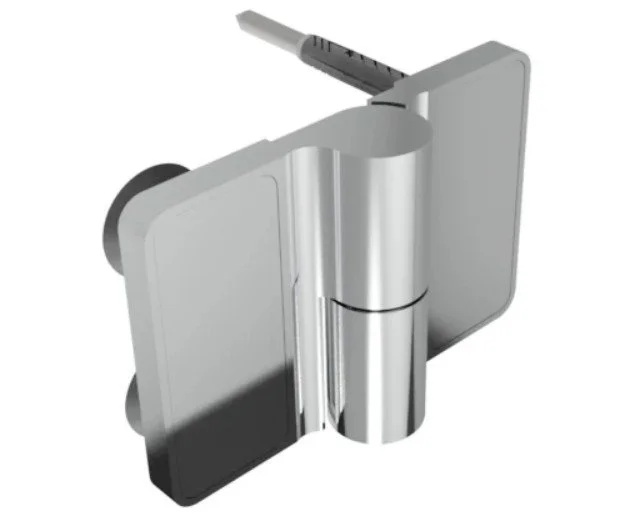

    SPIRIT GGS [DU.3340]

    glass to glass

    4x Ø3/4” / Ø1” countersunk drilling

    90° / 180° installations

    download spec
  • Close-up of a metal door hinge with black and silver components.

    SPIRIT GGP [DU.3341]

    glass to glass

    4× Ø5/8” drilling

    90° / 180° installations

    download spec
  • A close-up of a white fire alarm with a battery compartment reveal, showing internal battery and connections.

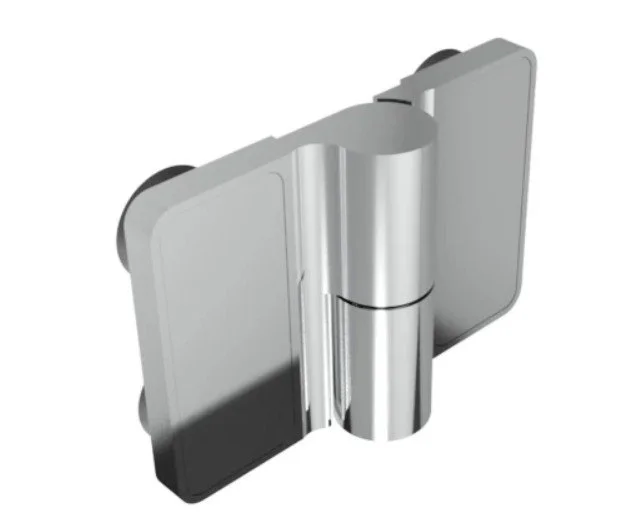

    SPIRIT WGS [DU.3342]

    glass to wall

    2x Ø3/4” / Ø1” countersunk drilling

    90° / 180° installations

    download spec
  • A silver and black wall-mounted hinge with a metallic finish and a concealed arm.

    SPIRIT WGP [DU.3343]

    glass to glass

    2× Ø5/8” drilling

    90° / 180° installations

    download spec

  • Starting at $605.00

    Price is per hinge

    All prices are retail | standard 600 grit Brushed finish

  • Product Information

    max. weight 110 Lbs

    6mm (1/4") lift & self closing with adjustable zero position

    Suitable for glass up to 1/2" [SB3] thru-drilling | up to 3/8" [SB1] countersunk drilling

    Specify countersunk drilling or thru-drilling

    Specify Left or Right

    1/4" lifting action permits space for fin seals on base of door

    Made of V2A (304 grade) stainless steel 100% Made in Germany

    Finishes available: Brushed 600 grit stainless steel, polished stainless steel, PVD colors, 24K gold plated, burnished

  • White pair of binoculars with a compact, modern design.

    ST.7004.AR

    glass to glass

    2x Ø5/8” drilling

    90° - 180° installations

    download spec
  • A pair of stainless steel door handles connected at a swivel joint.

    DU.3304.V

    glass to glass

    2× Ø3/4 /1” countersunk drilling

    90° - 180° installations

    download spec
  • Silver door hinge with a modern, sleek design, isolated on a white background.

    ST.7004.V

    glass to glass

    2x Ø5/8” drilling

    90° / 180° installations

    download spec
  • A metal caster wheel with a black rubber tire and a locking mechanism.

    ST.7001.V

    glass to wall/ceiling/floor

    1× Ø5/8” drilling

    90° installations

    download spec
  • Close-up of a stainless steel industrial or laboratory component with mounting holes and a circular opening, possibly a gas or fluid flow part.

    ST.7001.AR

    glass to wall/ceiling/floor

    1× Ø5/8” drilling

    90° installations

    download spec
  • A stainless steel corner shower caddy with two shelves and a small logo at the bottom

    DU.3321.PH

    glass to wall/ceiling/floor

    2× Ø5/8” drilling

    90° installations

    download spec
  • MWE DU.3321.PH glass to wall glass connector, ceiling to wall glass connector, floor glass connector stainless steel shower hardware, stainless steel glass connector, stainless steel glass connector, glass fixing, glass support

    DU.3321.SK

    glass to wall/ceiling/floor

    2× Ø3/4” / 1” countersunk drilling

    90° installations

    download spec
  • MWE DU.3302 glass to glass connector, stainless steel glass connector, glass fixing, glass support

    DU.3302

    glass to glass

    2× Ø3/4 /1” countersunk drilling

    180° installations

    download spec
  • MWE DU.3301.PH glass to glass, glass to wall glass connector, ceiling to wall glass connector, floor glass connector stainless steel shower hardware, stainless steel glass connector, stainless steel glass connector, glass fixing, glass support

    DU.3301.PH

    glass to wall/ceiling/floor

    1× Ø5/8” drilling

    90° installations

    download spec
  • MWE DU.3301.SK glass to glass, glass to wall glass connector, ceiling to wall glass connector, floor glass connector stainless steel shower hardware, stainless steel glass connector, stainless steel glass connector, glass fixing, glass support

    DU.3301.SK

    glass to wall/ceiling/floor

    2× Ø3/4 /1” countersunk drilling

    90° installations

    download spec
