Specify :

ST.1007.DU

Includes :

• ST.2000 - Ø25mm (1”) solid stainless steel rail. Custom length; rails at or above 2400mm (94-1/2”) are supplied in segments

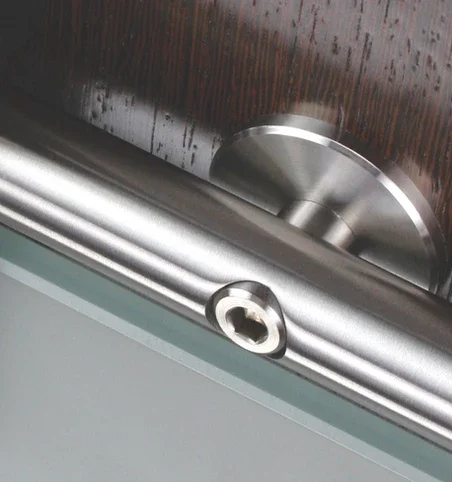

• ST.2100 - Rail Mount for ST.2000; note projection available from 17.5mm (11/16") - 52.5mm (2-1/16”) LEARN MORE

• ST.4005 / ST.4012 - Floor guide for wood or glass door according to project requirements LEARN MORE

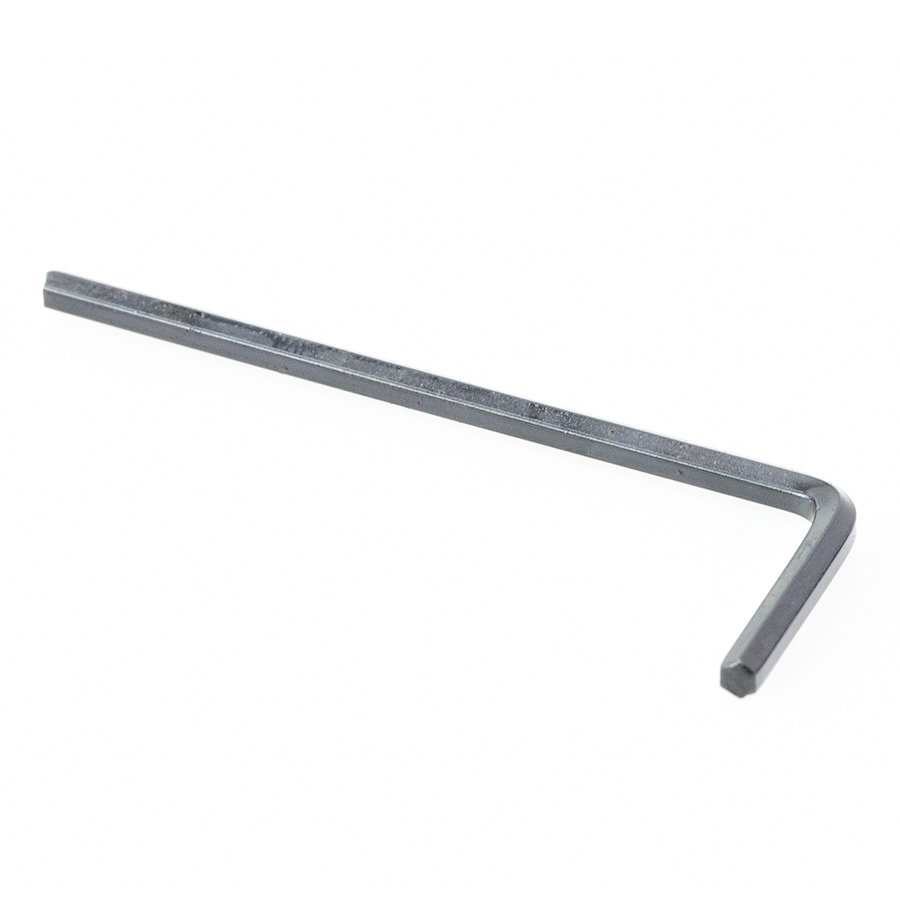

• ST.3007.DU - Rail mounted stop, adjustable during and after installation. Required when soft-stop is specified.

Additional accessories may be specified, see Product Details for options.

Max. weight 551 Lbs. per door panel

Two wheels per door only! Additional wheels will not enable the weight limit to increase.

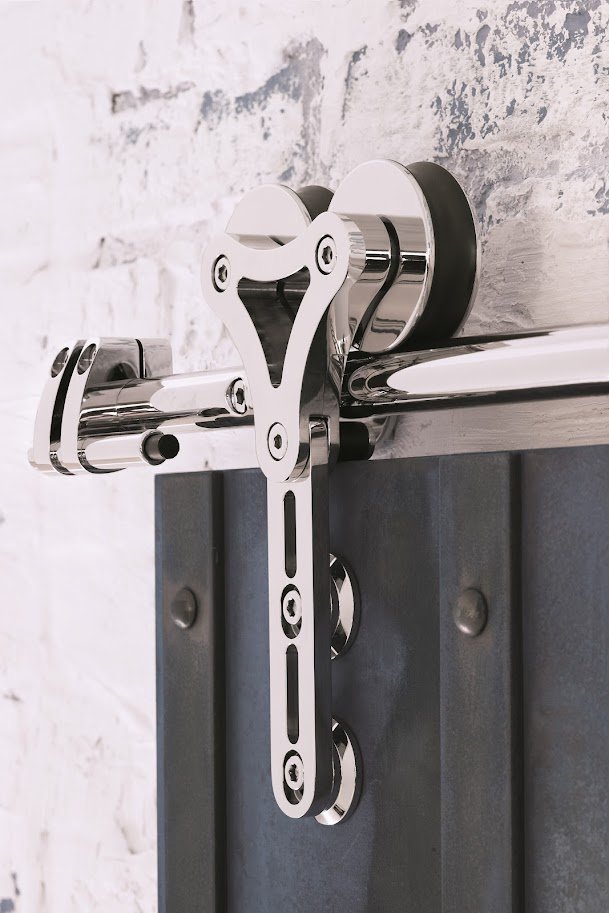

Suitable for both wood and glass doors. MWE wheel assemblies are suitable for all US standard door thicknesses! Specify door thickness on purchase order. Projection of center rail to wall will be calculated.

Requires 2x Ø16mm (5/8”) drillings; follow product technical details for door preparation.

Optional features:

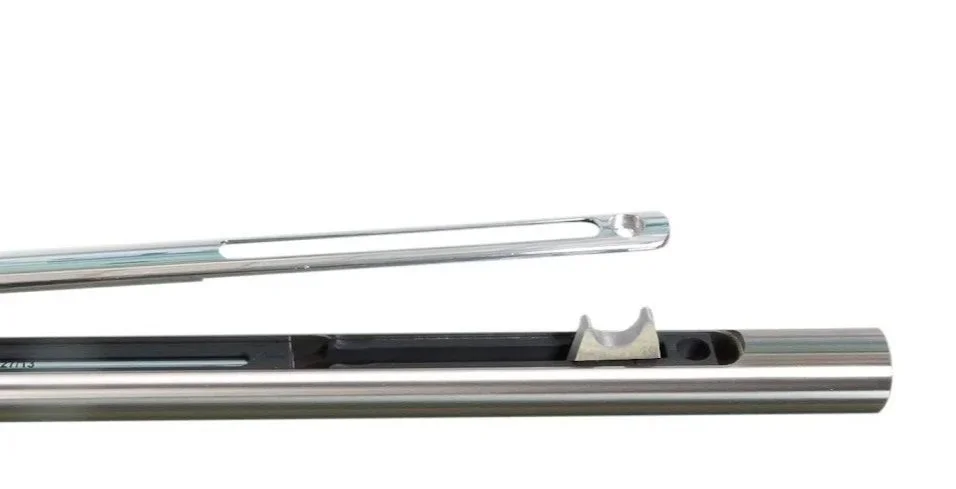

Soft-Stop Technology - MWE has engineered a maintenance-free soft-stop mechanism that is fully integrated into the solid stainless-steel rail for smooth, reliable performance. Specify soft-stop for one or both directions to assist with holding the door open or closed.

Synchronization System - Designed to effortlessly roll double bi-parting doors in tandem, the synchronization system is an elegant pulley assembly that ensures smooth, coordinated movement and is fully adjustable for precise alignment and optimal performance.

Made of V2A (304 grade) stainless steel LEARN MORE

available in :

• 600 grit satin stainless steel

• Mirror polished stainless steel

• Powder coated (specify RAL color code)

• PVD Brass

• PVD Copper

• PVD Carbon Black

NOTE: Visible screws will not be powder-coated

Follow manufacturers specifications for mounting distances; max. 500mm (19-11/16”) span between mount positions.

Solid blocking is required behind the rail to ensure each mount position is secure. Seek an engineer to specify proper building material.

Follow manufacturers installation guide.

Do not exclude required components.

Properly adjust anti-jump wheel via the eccentric hole.

Securely torque each bolt to ensure door and stops are secure.

Specify proper handles; either flush or pull grips to ensure fingers do not pinch in the gap between wall and door.

When specifying locks, follow all guidelines to ensure a means of egress has been considered.

Do not exceed weight limit of selected wheel assembly.

Always use tempered glass when installing frameless glass.

LEARN MORE

Shipments are sent via direct-air/FedEx.

Lead times vary from 4-10 weeks, finish is a factor of lead time.

See further information on shipping at FAQ_SHIPMENT RECEIVING

Maintain door by checking each screw is secure to avoid malfunction.

Clean stainless steel with a damp cloth; do not use harsh chemicals, stainless steel base material should not be exposed to salty air to avoid rust.
