CLASSIC

ECLISSE Classic Collection describes sliding pocket doors trim

SYNTESIS

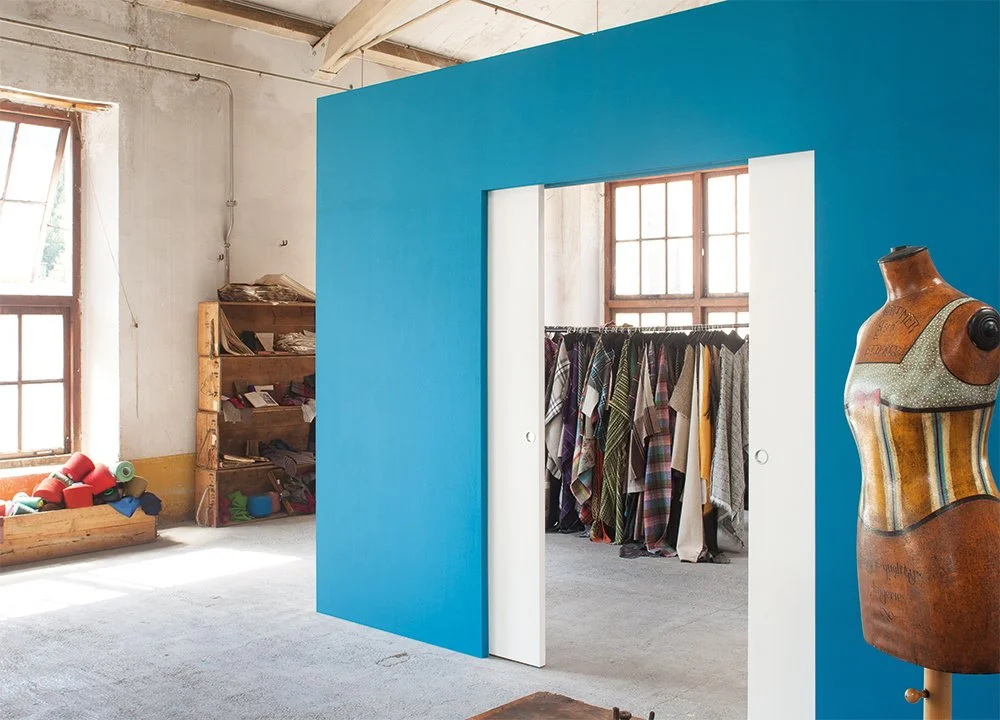

ECLISSE Syntesis Collection features trim-free sliding pocket doors and concealed jamb hinged doors for a clean, minimalist appearance.

ECLISSE BIAS®

[Anti-Slam] An oil piston that slows and softly closes the door in one direction.
Full closure of doors up to 88 lbs.
Reduces speed of doors up to 220 lbs.
Suitable for glass or wood doors
24" wide door panel.
DOWNLOAD TECHNICAL DETAIL (PDF)
WATCH VIDEO
ECLISSE BIAS® DS

[Anti-Slam] An oil piston that slows and softly closes the door in both directions
Full closure of doors up to 88 lbs.
Reduces speed of doors up to 220 lbs.
Suitable for glass or wood doors
24" wide door panel.
DOWNLOAD TECHNICAL DETAIL_CLASSIC (PDF)
DOWNLOAD TECHNICAL DETAIL_SYNTESIS (PDF)
WATCH VIDEO
ECLISSE ANTI-SLAM-HD (ADA compliant)

Heavy Duty is a soft closer for sliding pocket door systems fully integrated inside the track and invisible from outside. An oil piston which slows down the door in both directions
Suitable for glass and wood doors.
May be paired with Self-Closing System and Double Doors Co-Ordination (the door panel will protrude by ~2-3/8").
Meets ADA requirements : less than 5 lbs. of pressure to open the door.
up to 330 lbs.
DOWNLOAD TECHNICAL DETAIL_HD (PDF)
RALLENTY SOFT STOP

A mechanism that slows the door for a soft, smooth close, improving comfort and function. Hidden from view, it mounts to the door panel and can be added to existing frames.
It is suitable for glass or wood doors, on models with jambs
May be retrofit on existing pocket doors
Suitable for panels up to 88 lbs.
Combined with the Double door coordination suitable for panels up to 55 lbs.
May be combined with the Self-closing System.
DOWNLOAD TECHNICAL DETAIL_SINGLE (PDF)
DOWNLOAD TECHNICAL DETAIL_DOUBLE (PDF)
DOWNLOAD TECHNICAL DETAIL_GLASS (PDF)
SELF-CLOSING | BIAS

A counterweight installed permits the door to bring itself to a close.
Suitable for retrofit or order with It can be installed on Single, Double, Luce Single, Luce Double and Unilateral ECLISSE systems.
Suitable for wood doors.
DOWNLOAD TECHNICAL DETAIL_BIAS (PDF)
DOWNLOAD TECHNICAL DETAL (PDF)
WATCH VIDEO
TELESCOPIC SYNCHRONIZATION

The telescopic door sync lets both panels slide together smoothly in the same direction, without jerking or getting stuck. It mounts to the door panel and doesn’t require changing the track.
Suitable for wood doors.
Combine with ECLISSE BIAS, suitable for panels up to 55 lbs. each for full closure; reduces speed of panels over 55-110 lbs. each.
DOWNLOAD TECHNICAL DETAIL (PDF)
DOUBLE COORDINATION

The double-door coordinator allows doors to close and open in tandem with smooth, convenient operation.
Fits existing ECLISSE installations.
Suitable for door widths 24” - 42" each.
To be used in conjunction with the ECLISSE BIAS (Soft Closer)
Suitable for wood doors.
DOWNLOAD TECHNICAL DETAIL_CLASSIC (PDF)
DOWNLOAD TECHNICAL DETAIL_SYNTESIS (PDF)
WATCH VIDEO
ECLISSE PUSH|PULL

Push the door deeper into the pocket to release and pull the door to a closed position permitting the doors edge to be clear of hardware.
Suitable for glass and wooden doors
Suitable for retrofit installs thanks to the extractable track ECLISSE
May be paired with ECLISSE BIAS, ECLISSE BIAS DS, Double door coordination or Double door coordination for SYNTESIS®.
Note: double door models require an accessory for each door panel.
Specify (S) for ECLISSE SYNTESIS® Collection | (C) for ECLISSE Classic Collection
Note suitable for Telescopic or Circular applications.
up to 110 lbs.
DOWNLOAD TECHNICAL DETAIL_SYNTESIS (PDF)
DOWNLOAD TECHNICAL DETAIL_CLASSIC (PDF)
WATCH VIDEO
