• 1-3/4” door thickness

• Measure from finished floor

• R.O. = door height + 3-1/4”

  24” door width = 50-1/2” R.O.

  26” door width = 54-1/2” R.O.

  28” door width = 58-1/2” R.O.

  30” door width = 62-1/2” R.O.

  32” door width = 66-1/2” R.O.

  34” door width = 70-1/2” R.O.

  36” door width = 74-1/2” R.O.

  42” door width = 85-1/2” R.O.

  48” door width = 97-1/2” R.O.

• Maximum door with = 48” (72” on request) | door height = 120”

• Maximum door weight 220 lbs. (330 lbs. on request)

WALKTHROUGH = Door width - 1-1/4”

***Minimum 34” door for ADA compliance 32” clear opening

(2×4) = 3-1/2" stud +5/8" drywall on each side = 4-3/4” finished wall thickness

(2×6) = 5-1/2" stud +5/8" drywall on each side = 6-3/4" finished wall thickness

See Downloads for technical details

Fully extractable top running track : easily extract the rail where the door slides, to clean it or install equipment without removing drywall.

Door stopper easily adjusts into the desired position.

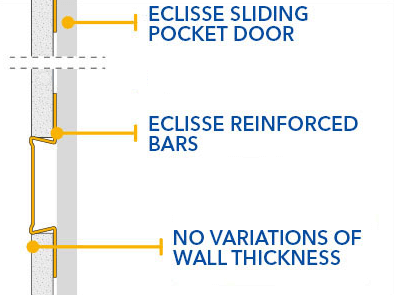

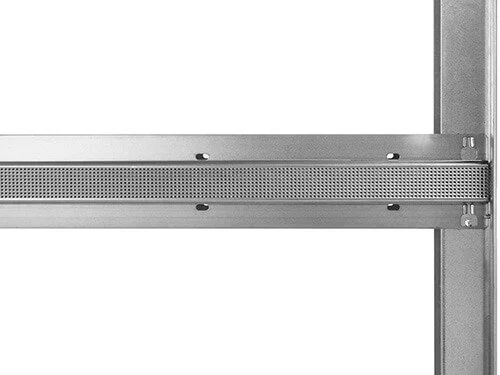

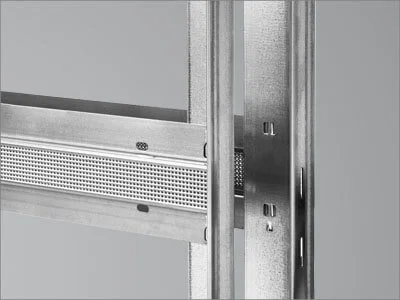

Reinforced horizontal bars (Patented No. US 11,499,309) feature anti-flexion dove-tail shaped pre-drilled designed to prevent bowing.

Self-centering door guide : patented guide is fixed behind the frame with two screws, requiring no measuring, avoiding errors during install and preventing damage to floor material.

220 and 330 lbs rolling carriages are tested by CSI, IMQ group: after 100,000 opening-closing cycles. Equivalent to approximately 30 years of use (UNI EN 1670).

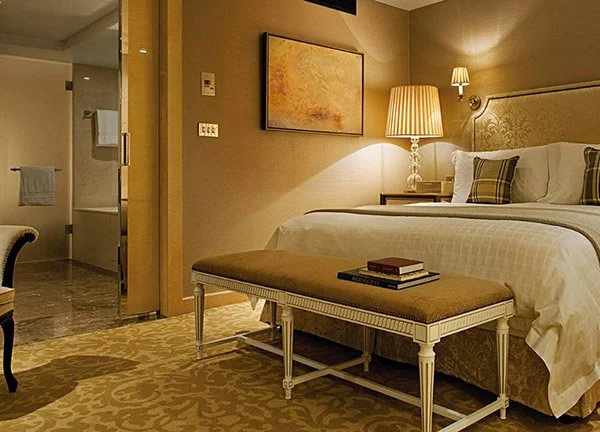

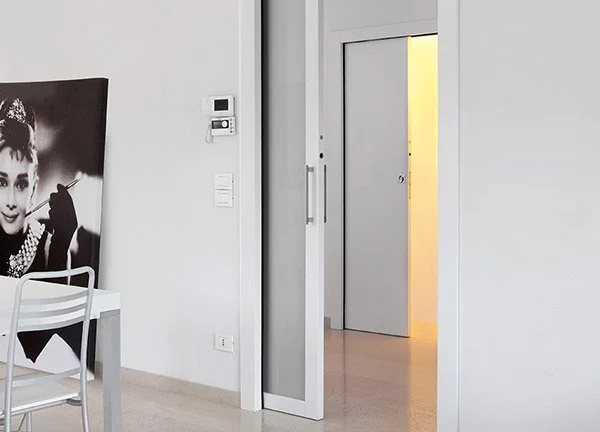

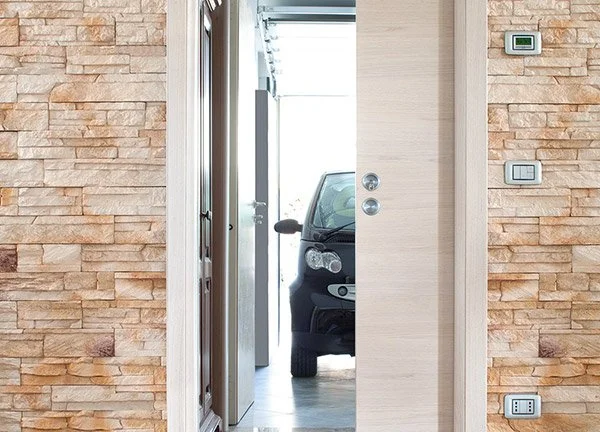

LUCE System : specify LUCE for openings requiring outlets or light switches. Pre-planned system designed around wiring to enable uncompromised door function.

Acoustic Option

Noise abatement 38 dB (-1; -3).
Test performed on a 890x2030 mm frame, installed to perfection, equipped with blind shell lock.

ECLISSE Acoustic door panel and jambs are available in raw walnut Tanganyika and in lacquered RAL colors.

• 2x4 wall thickness

• DW from 24" to 36" x DH from 80" to 96".

• Acoustic kit reduces the clear passage size by 1/2".

UNI EN ISO 10140 - 2
Laboratory measurement of sound insulation in buildings and building elements - Part 2: Measurement of acoustic insulation by air.

UNI EN ISO 717 - 1
Evaluation of sound insulation in buildings and building elements - Part 1: Sound insulation by air.

LEARN MORE

ECLISSE BIAS® [Anti-Slam] An oil piston that slows and softly closes the door in one direction

ECLISSE BIAS® DS [Anti-Slam] An oil piston that slows and softly closes the door in both directions

ECLISSE ANTI-SLAM-HD (ADA compliant) Heavy Duty is a soft closer for sliding pocket door systems fully integrated inside the track and invisible from outside. An oil piston which slows down the door in both directions

• Suitable for glass and wooden doors.

• May be paired with Self-Closing System and Double Doors Co-Ordination (the door panel will protrude by ~2-3/8").

• Meets ADA requirements : less than 5 lbs. of pressure to open the door.

• up to 330 lbs.

ECLISSE PUSH-PULL : Push the door deeper into the pocket to release and pull the door to a closed position permitting the doors edge to be clear of hardware.

• Suitable for glass and wooden doors

• Suitable for retrofit installs thanks to the extractable track ECLISSE

• May be paired with ECLISSE BIAS, ECLISSE BIAS DS, Double door coordination or Double door coordination for SYNTESIS®.

• Note: double door models require an accessory for each door panel.

• Specify (S) for ECLISSE SYNTESIS® Collection | (C) for ECLISSE Classic Collection

• Note suitable for Telescopic or Circular applications.

• up to 110 lbs.

DOUBLE DOOR CO-ORDINATION WITH BIAS : Open and close two bi-parting doors simultaneously by moving only one panel.

SELF-CLOSING : A counterweight installed permits the door to bring itself to a close.

• Suitable for retrofit or order with It can be installed on Single, Double, Luce Single, Luce Double and Unilateral ECLISSE systems.

• Applicable only on wooden doors.

ANTI-WARP JAMB PROFILE : An extruded aluminum guide designed to fit at the bottom of sliding pocket doors. Easy to install on existing doors, requiring a 3/4” x 3/4” groove milled at the base of the door to prevent swelling from humidity, ensuring smooth and easy sliding during all seasons.

LUCE KIT : Wiring Channel (2x6 wall frame kits only) up to (5) electric boxes per side.

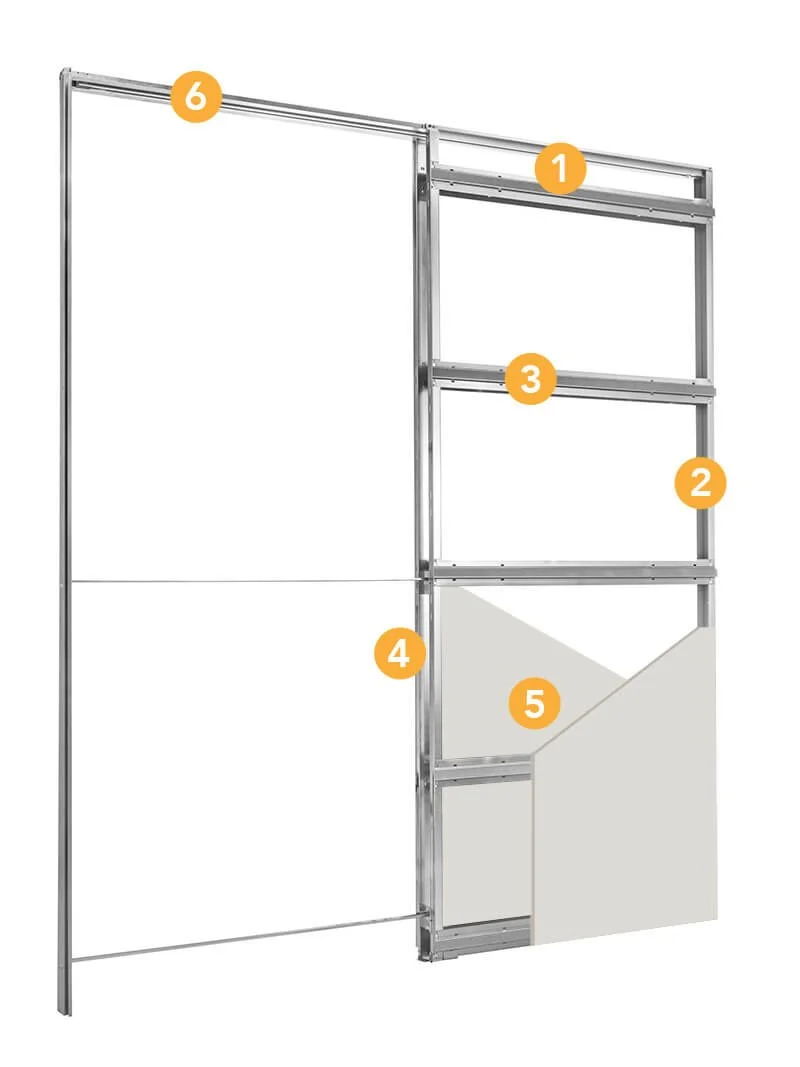

Pre-cut frame pieces fit wood or metal studs and assemble quickly with few screws. Ensures a strong pocket and even door space.

See VIDEO for assembly

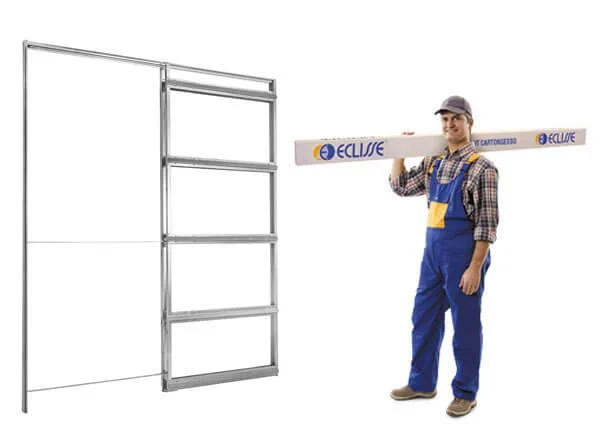

The unassembled stud wall frame (KIT) is compact, easy to transport, handle, and store (over 50 pieces fit in one square meter). It lets you choose the internal passage size (2-3/8" or 4-3/8") on-site based on wall thickness, which can be adjusted during installation. The innovative interlocking system means no screws or tools are needed, making assembly quick and easy.

Long lasting and paintable The frame is a durable anodized aluminum to prevent oxidation and then primer-coated to facilitate paint adhesion.

The frame profile weighs about 1.35 lbs/ft.

The frame is designed to avoid drywall from cracking around the door.

Eclisse offers a 12 year warranty

Download Warranty Document for full details

1. Indicate Single, Double bi-parting, Double Bi-Part, Bi-Pass, Double Bi-Pass

2. (2×4) : 4-3/4” finished wall thickness OR (2×6) : 6-3/4" finished wall thickness

3. Door dimensions

4. Handle hardware finish aluminum chrome, champagne, bronze, tobacco or white

5. Optional accessories
