Specify :

ST.1060.TE - Terra (glass & wood)

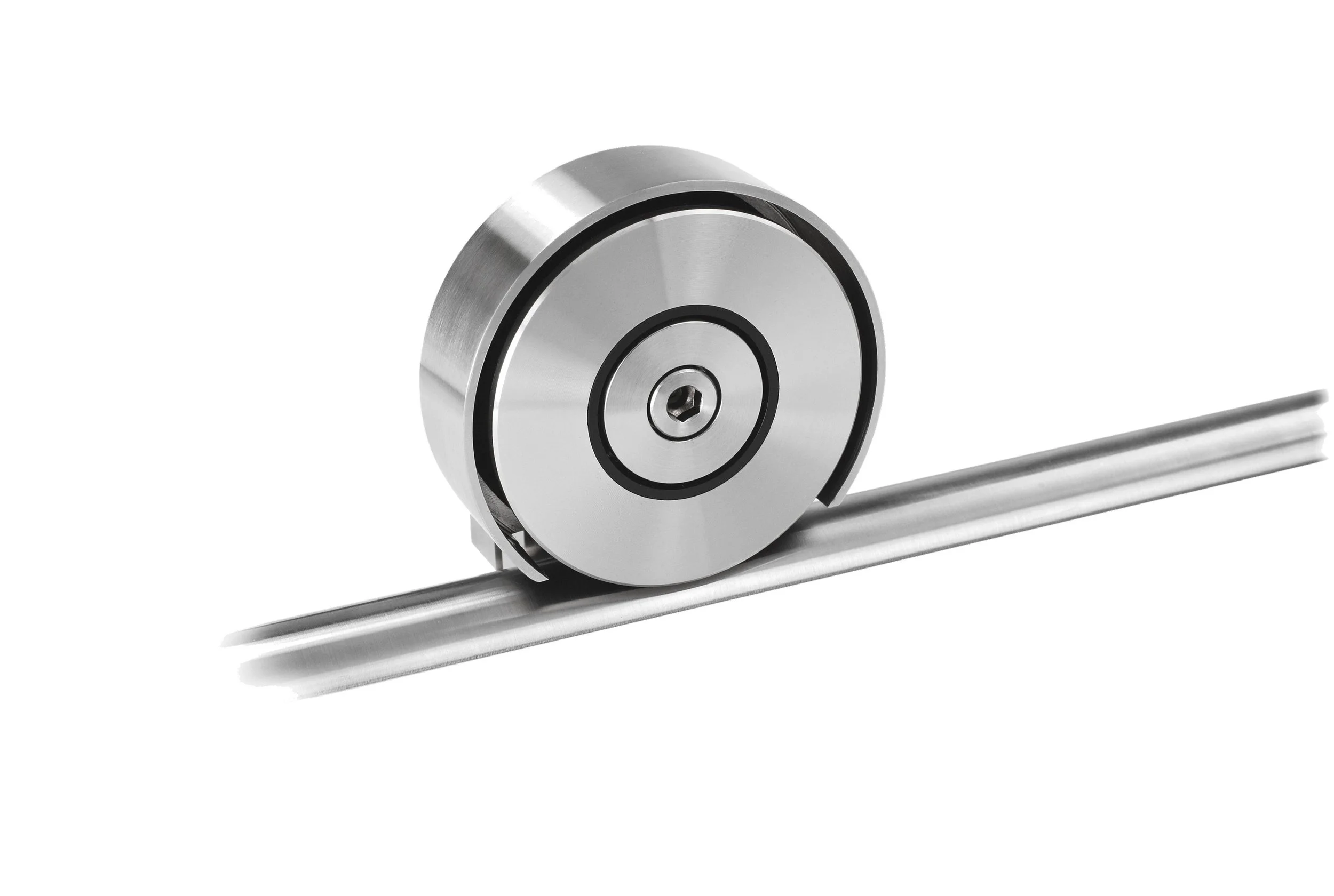

ST.1061.TH - Terra H (wood only)

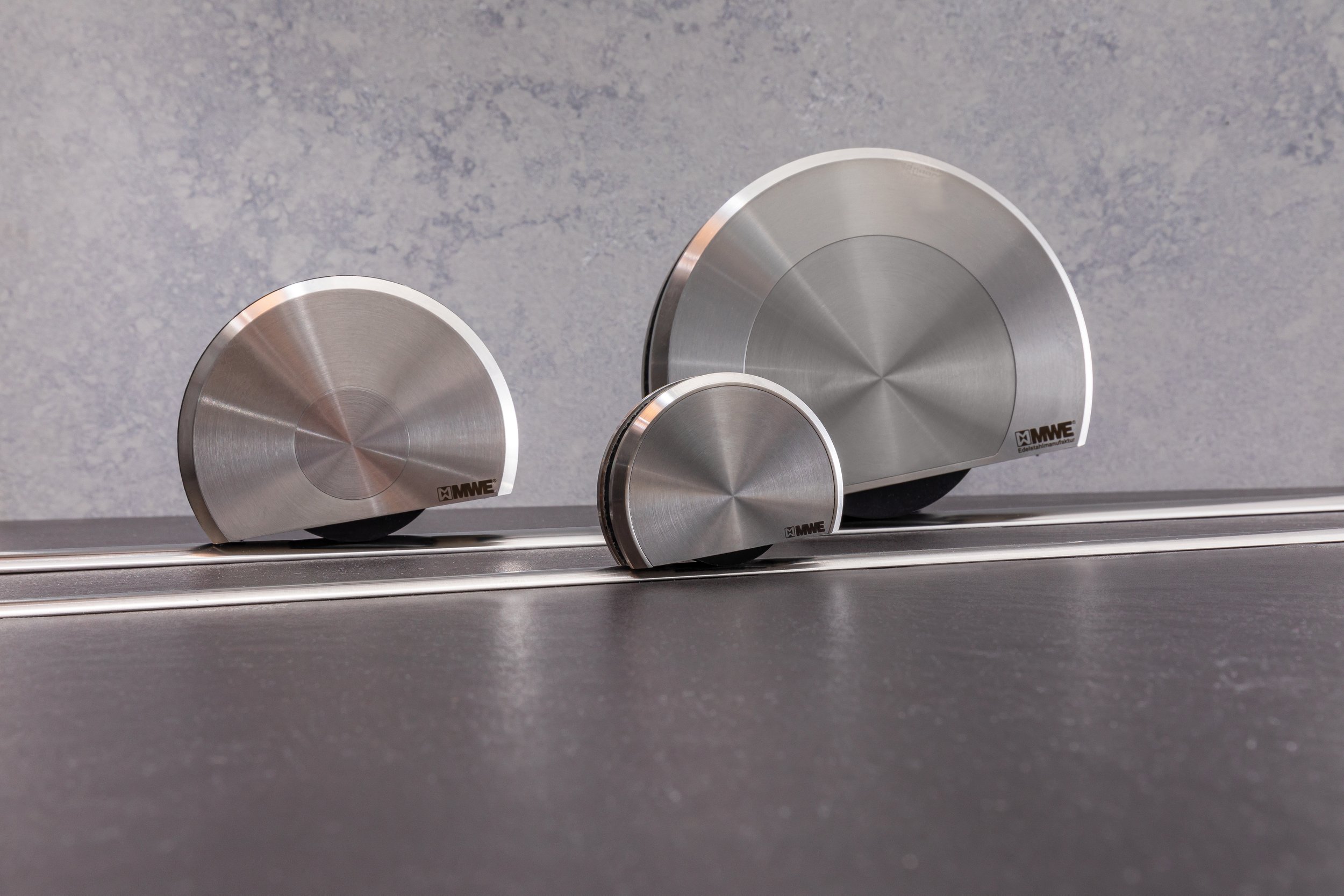

ST.1062.TM - Terra M (glass only)

ST.1062.TMXL - Terra M (glass only)

Includes :

• ST.2000.TE - Ø25mm (1”); 7mm (1/4”) height solid stainless steel rail. Custom length; rails at or above 2400mm (94-1/2”) are supplied in segments

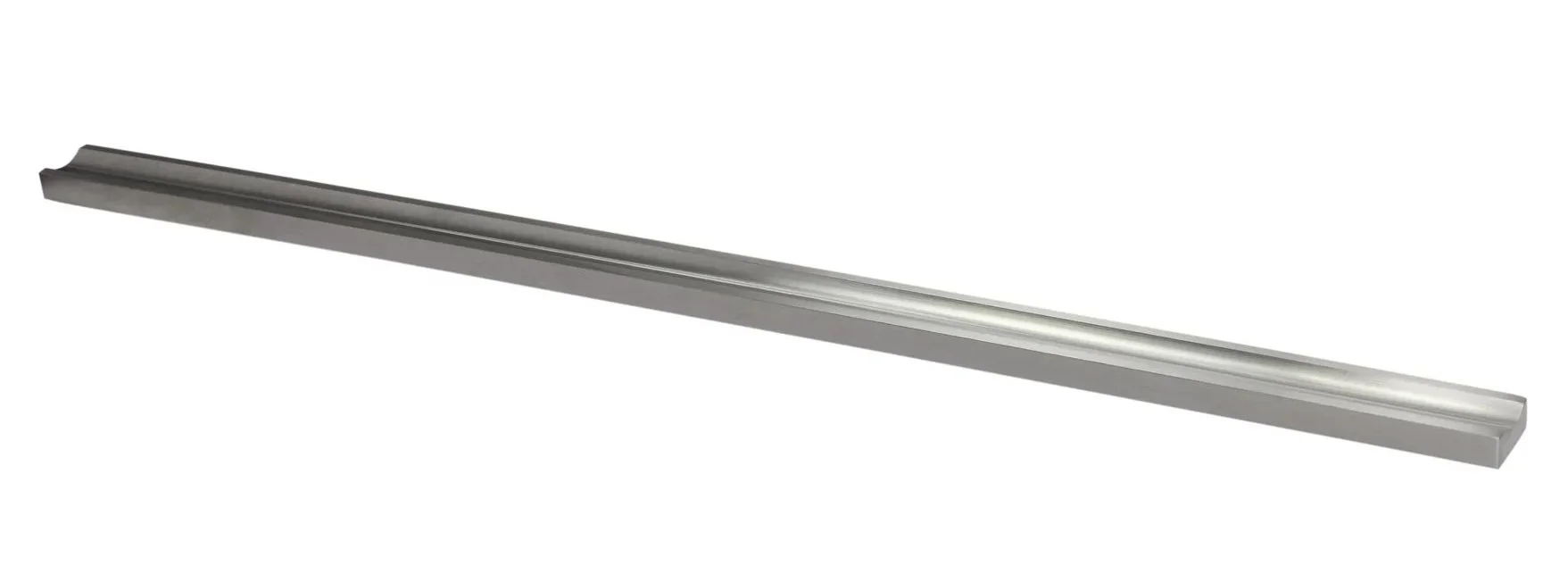

• ST.4040 - Top channel, felt lined; 40mm (1-9/16”) height, Custom length; rails at or above 2400mm (94-1/2”) are supplied in segments

• ST.3060.TE - Concealed track mounted stop may be substituted when soft-stop is specified.

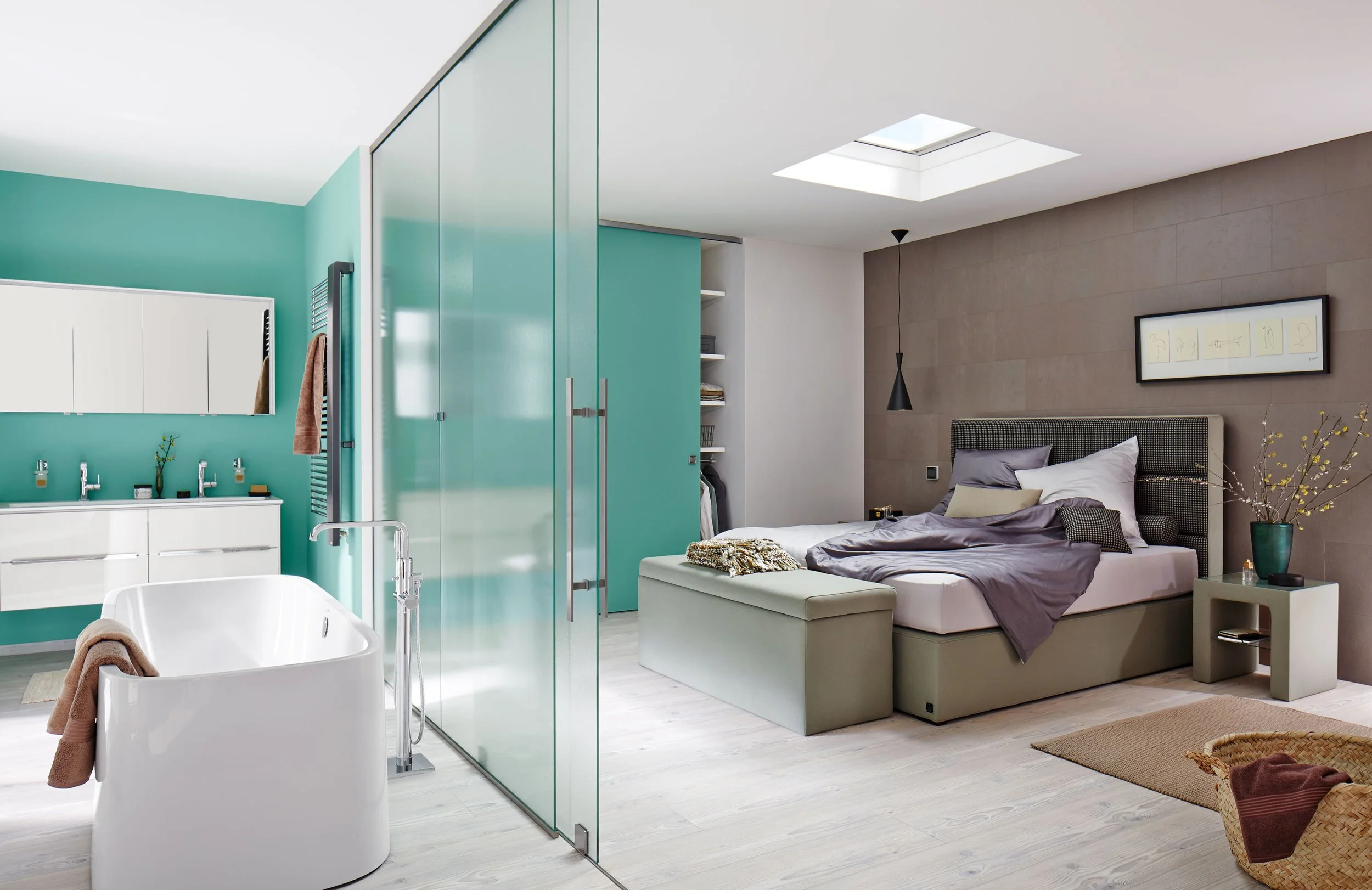

ST.1064.TA - Terra M (glass only)

Includes :

• ST.2000.TA - Ø14mm (9/16”); 4mm (3/16”) height solid stainless steel rail. Custom length; rails at or above 2400mm (94-1/2”) are supplied in segments

• ST.4040 - Top channel, felt lined; 40mm (1-9/16”) height, Custom length; rails at or above 2400mm (94-1/2”) are supplied in segments

• ST.3060.TE - Concealed track mounted stop may be substituted when soft-stop is specified.

Additional accessories may be specified, see Product Details for options.

ST.1060.TE - Terra (glass & wood) Max. weight 297 Lbs. per door panel

ST.1061.TH - Terra H (wood only) Max. weight 297 Lbs. per door panel

ST.1062.TM - Terra M (glass only) Max. weight 341 Lbs. per door panel

ST.1062.TMXL - Terra M (glass only) Max. weight 970 Lbs. per door panel

ST.1064.TA - Terra A (glass only) Max. weight 220 Lbs. per door panel

Two wheels per door only! Additional wheels will not enable the weight limit to increase.

MWE wheel assemblies are suitable for all US standard door thicknesses! Specify door thickness on purchase order. Projection of center rail to wall will be calculated.

Follow product technical details for door preparation.

Optional features:

Soft-Stop Technology - MWE has engineered a maintenance-free soft-stop mechanism that is fully integrated into the solid stainless-steel rail for smooth, reliable performance. Specify soft-stop for one or both directions to assist with holding the door open or closed.

Made of V2A (304 grade) stainless steel LEARN MORE

available in :

• 600 grit satin stainless steel

• Mirror polished stainless steel

• Powder coated (specify RAL color code)

• PVD Brass

• PVD Copper

• PVD Carbon Black

NOTE: Visible screws will not be powder-coated

Follow manufacturers specifications for mounting distances; max. 500mm (19-11/16”) span between mount positions.

Solid blocking is required behind the rail to ensure each mount position is secure. Seek an engineer to specify proper building material.

Follow manufacturers installation guide.

Do not exclude required components.

Properly adjust anti-jump wheel via the eccentric hole.

Securely torque each bolt to ensure door and stops are secure.

Specify proper handles; either flush or pull grips to ensure fingers do not pinch in the gap between wall and door.

When specifying locks, follow all guidelines to ensure a means of egress has been considered.

Do not exceed weight limit of selected wheel assembly.

Always use tempered glass when installing frameless glass.

LEARN MORE

Shipments are sent via direct-air/FedEx.

Lead times vary from 4-10 weeks, finish is a factor of lead time.

See further information on shipping at FAQ_SHIPMENT RECEIVING

Maintain door by checking each screw is secure to avoid malfunction.

Clean stainless steel with a damp cloth; do not use harsh chemicals, stainless steel base material should not be exposed to salty air to avoid rust.
